Aquam5/8
5/8 port unmanaged IP65/67 EN50155 switches
Product Overview

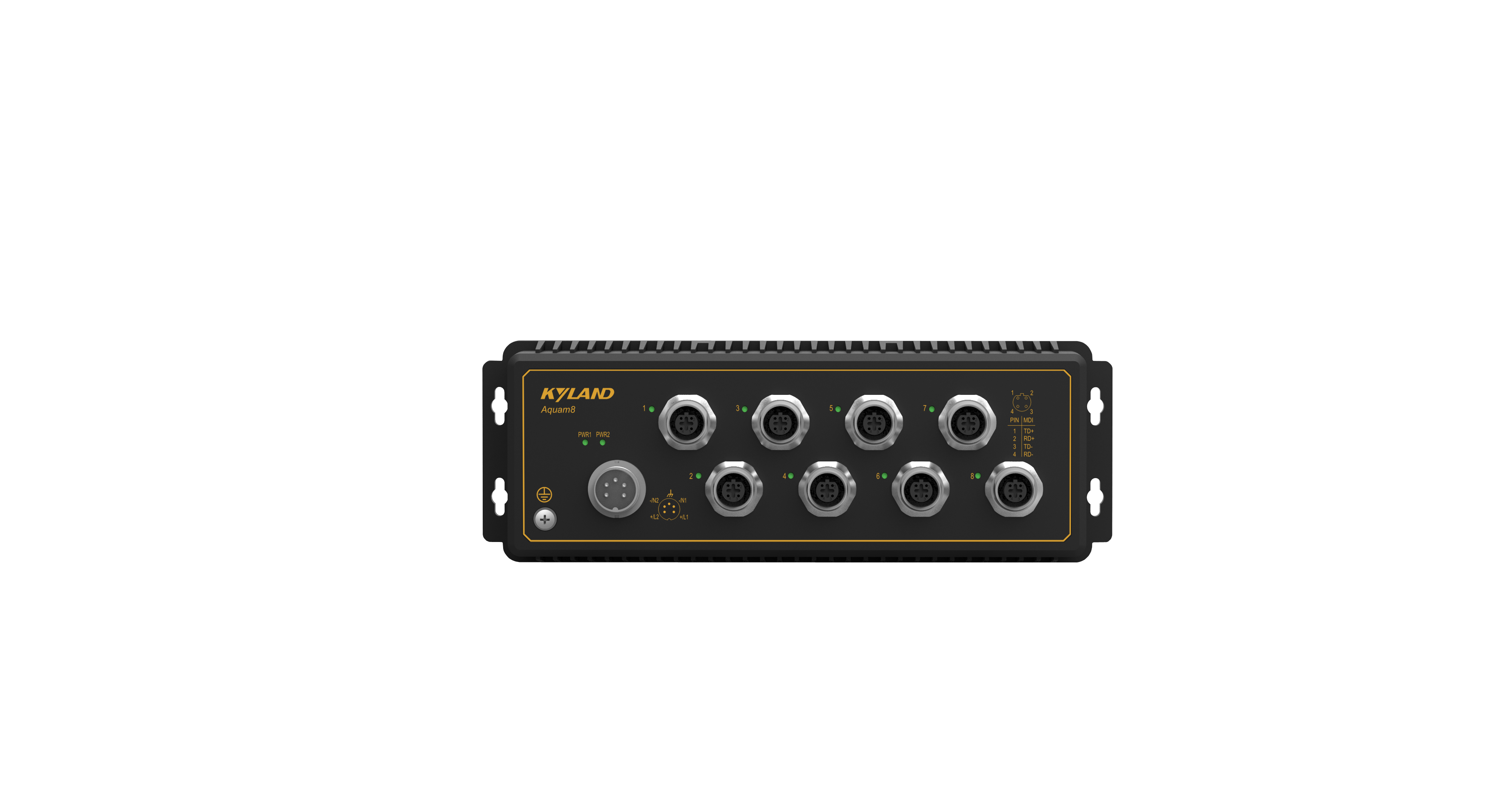

Aquam5/8 as IP65 and unmanaged Ethernet Switch, supports 5 or 8 Fast Ethernet interfaces of with M12 connector to ensure the tightness and the firmness of the connection and ensure reliable operation, especially suitable for application that are subject to high vibration and shock.
Aquam5/8 supports panel mounting, supports IP65 protection class to meet the requirements of dustproof and waterproof performance, supports a wide range of operation temperature(-40℃~75℃), and meets EN50155, EN50121, EN55022 Class A&B and FCC CFR47 Part 15 standard requirements, making the product is suitable for the industrial field of various harsh environment, especially rail transportation and automation industry with strict requirements on reliability.
Key Features
- Supports a maximum of 8 10/100Base-TX ports
- Supports M12 connectors
- Supports panel mounting
- Supports redundant power input
- Complies with the requirements of EN50155 and EN50121 industrial standards
- IP65/67 protection class
Specifications
| Technical Parameter | Standard IEEE 802.3i(10Base-T) IEEE 802.3u(100Base-TX) IEEE 802.3x(Flow control) |
| Switch Properties | MAC Table 2K Packet Buffer 1Mbit Packet Forwarding Rate Aquam5: 0.7Mpps Aquam8: 1.2Mpps Switching Delay <10us |
| Interface | Fast Ethernet Port 10/100Base-T(X)，M12 D-coded connector |
| LED | LEDs on Front Panel Power LED: PWR1,PWR2 Interface LED: Link/ACT |
| Power Requirements | Power Input 24VAC/DC(12-48VDC/18-30VAC) 110VDC(50.4-137.5VDC) Power Terminal M12 Power Consumption <4.6W Overload Protection Support Reverse Connection Protection Support |
| Physical Characteristics | Housing Metal cooling Nature cooling,fanless Protection Class IP65/67 Dimensions 74mm×220mm×50.9mm(W×H×D) Weight <0.75Kg Mounting panel mounting |
| Environmental Limits | Operating Temperature -40 to +75°C Storage Temperature -40 to +85°C Ambient Relative Humidity 5 to 95% (non-condensing) |
| Warranty | MTBF 4381030h Warranty Period 5 years |
| Approvals | 24VAC/DC Model: CE, FCC, EN50155, EN50121, EN45545, E mark, UL61010 110VDC Model: CE, FCC, EN50155, EN50121, EN45545, EN60950 |
| Industrial Standard | EMI FCC CFR47 Part 15,EN55022/CISPR22,Class A EMS IEC61000-4-2 (ESD) ±6kV (contact), ±8kV (air) IEC61000-4-3 (RS) 20V/m (80MHz-2GHz) IEC61000-4-4 (EFT) Power Port: ±2kV; Data Port: ±2kV IEC61000-4-5 (Surge) Power Port: ±1kV/DM, ±2kV/CM IEC61000-4-6 (CS) 10V (150kHz-80MHz) IEC61000-4-8(Power frequency magnetic field)50Hz 100A/m IEC61000-4-9(Pulsed magnetic field )300A/m IEC61000-4-29 (Voltage Short interruptions) 10ms 100% Safety EN60950-1 Machinery IEC61373 (Vibration and Shock) IEC60068-2-32 (Free Fall) |
Mechanical Drawing
Ordering Information
| Recommended Models | |
|---|---|
| Product Model | Aquam5-Ports-PS1-PS2 |
| Code Definition | Ordering Codes |
| Ports | 5T = 5 X 10/100BASE-T(X) M12 port |
| PS1-PS2 (Power Supply) | LV-LV=24VAC/DC(12-48VDC/18-30 VAC), redundant power input |
| Product Model | Aquam5-H-Ports-PS1-PS2 |
| H: High protection class | Product support IP67 protection class, while others without this mark support IP65 protection class |
| Ports | 5T = 5 X 10/100BASE-T(X) M12 port |
| PS1-PS2 (Power Supply) | LV-LV=24VAC/DC(12-48VDC/18-30 VAC), redundant power input |
| Product Model | Aquam5-N-Ports-PS1-PS2 |
| N: Neutral | The product appearance without kyland logo |
| Ports | 5T = 5 X 10/100BASE-T(X) M12 port |
| PS1-PS2 (Power Supply) | LV-LV=24VAC/DC(12-48VDC/18-30 VAC), redundant power input |
| Product Model | Aquam5-NH-Ports-PS1-PS2 |
| H: High protection class N: Neutral | Product support IP67 protection class, while others without this mark support IP65 protection class; Product appearance without kyland logo; |
| Ports | 5T = 5 X 10/100BASE-T(X) M12 port |
| PS1-PS2 (Power Supply) | LV-LV=24VAC/DC(12-48VDC/18-30 VAC), redundant power input |
| Product Model | Aquam8-Ports-PS1-PS2 |
| Code Definition | Ordering Codes |
| Ports | 8T = 8 X 10/100BASE-T(X) M12 port |
| PS1-PS2 (Power Supply) | LV-LV=24VAC/DC(12-48VDC/18-30 VAC), redundant power input |
| Product Model | Aquam8-H-Ports-PS1-PS2 |
| H: High protection class | Product support IP67 protection class, while others without this mark support IP65 protection class |
| Ports | 8T = 8 X 10/100BASE-T(X) M12 port |
| PS1-PS2 (Power Supply) | LV-LV=24VAC/DC(12-48VDC/18-30 VAC), redundant power input |
| Product Model | Aquam8-N-Ports-PS1-PS2 |
| N: Neutral | The product appearance without kyland logo |
| Ports | 8T = 8 X 10/100BASE-T(X) M12 port |
| PS1-PS2 (Power Supply) | LV-LV=24VAC/DC(12-48VDC/18-30 VAC), redundant power input |
| Product Model | Aquam8-NH-Ports-PS1-PS2 |
| H: High protection class N: Neutral | Product support IP67 protection class, while others without this mark support IP65 protection class; Product appearance without kyland logo; |
| Ports | 8T = 8 X 10/100BASE-T(X) M12 port |
| PS1-PS2 (Power Supply) | LV-LV=24VAC/DC(12-48VDC/18-30 VAC), redundant power input |
| Product Model | Aquam5-Ports-PS1-PS2 |
| Code Definition | Ordering Codes |
| Ports | 5T = 5 X 10/100BASE-T(X) M12 port |
| PS1-PS2 (Power Supply) | H6-H6=72-110VDC(50.4-137.5VDC), redundant power input |
| Product Model | Aquam8-Ports-PS1-PS2 |
| Ports | 8T = 8 X 10/100BASE-T(X) M12 port |
| PS1-PS2 (Power Supply) | H6-H6=72-110VDC(50.4-137.5VDC), redundant power input |
| Accessories | ||
|---|---|---|
| Accessory Model | Description | Note |
| M12-A-4P-F | Female cable connector with M12, A-Coding, 4 Pin | Power interface Connector |
| M12-D-4P-M | Male cable connector with M12, D-Coding, 4 Pin | 10/100Base-TX interface Connector |
| DT-XL-PWR-M12-XXX-3m | 3m connecting line with M12 connector for power ports (from M12 to the exposed end) | Power cable with M12 connector |
Downloads
| Name | Type | File Size | |
|---|---|---|---|
Aquam5/8_Series-Industrial-Ethernet-Switches-Hardware-Installation-Manual_V1.2 | Hardware Installation Manual | ||
Kyland_Aquam5/8_Datasheet | Datasheet |
| Unmanaged/managed | Unmanaged Switches |
|---|---|
| Installation | Wall-mount Ethernet Switches |
| Certificate | CE/FCC, EN45545, EN50121, EN50155, UL61010 |
| Interface | Gigabit/100M |
| IP Class | IP65 |
| Network Interface | M12 Connectors |
| Number of Ports | 0 – 8 |
| Power Supply | 24V DC, 110V DC |
| Operation Temperature | -40°C ~ 75°C |
