Product Overview

Time Sensitive Networking (TSN) is a set of protocol standards developed by the IEEE 802.1 TSN Task Force. The standard defines a time-sensitive mechanism for Ethernet data transmission that adds certainty and reliability to standard Ethernet by allowing some traffic packets to be forwarded first, clearing lines using gated scheduling mechanisms and bandwidth reservation to guarantee the performance of service traffic in Ethernet to ensure that Ethernet can provide a stable and consistent level of service for the transmission of critical data.

The Aquam8124TSN series is an EN50155 managed industrial Ethernet switch designed specifically for the rail industry, support up to 24 Gigabit ports, support wall-mounting and a wide range of operable temperatures (-40°C~75°C), meeting the requirements of EN50155, EN50121 and other rail industry standards.

The Aquam8124TSN series supports Time Sensitive Network (TSN) features, the current time sensitive network base protocols include: IEEE 802.1AS Time Synchronization, IEEE 802.1Qbv Scheduled Traffic, IEEE802.1Qbu. IEEE802.1Qci, IEEE802.1CB, etc. PoE model supports 110VDC isolated power supply and up to 8 IEEE802.3at PoE+ ports(IEEE802.3af compatible).

Key Features
  • Aquam8124TSN series support up to 24 Gigabit ports, or 4 Gigabit ports + 20 100M ports, and 8 PoE ports
  • Supports PoE power up to 60W
  • Gigabit ports support X-Code M12 connectors, 100 Mports support D-Code M12 connectors
  • Supports Bypass function(Optional)
  • Supports DT-Ring, STP/RSTP/MSTP, DRP ring redundancy protocol and VRRPMeets EN50155 and EN50121 industry standard requirements
Specifications
Software FunctionTSN StandardSupports IEEE 802.1AS PTP/ IEEE 802.1Qbv/ IEEE 802.1Qbu/ IEEE 802.1Qci/ IEEE 802.1CB
SwitchingSupports VLAN, PVLAN
Supports GVRP
Supports port aggregation, LACP
Supports port flow control
Supports Rate limit based on flow (ACL Rate Limiter)
Supports Global broadcast storm suppression (QOS Storm Policing)
RedundancySupports DT-Ring, DT-Ring+, DT-VLAN with the recovery time<50ms
Supports DRP/DHP with the recovery time<20ms
Supports STP/RSTP/MSTP
MulticastSupports IGMP snooping
Supports GMRP
Supports static multicast
Support IGMP v2/ v3
Network SecuritySupports HTTPS/SSL
Supports SSH
Supports TACACS+
Supports IEEE802.1X
Supports RADIUS
Supports User Classification
Supports MAC address binding with switch ports
Service QualitySupports QoS, 802.1p(CoS), DSCP
Supports SP, WRR queue scheduling
Supports ACL
Management and MaintenanceSupports Console, Telnet, WEB management methods
Supports SNMPv1/v2c/v3, Kyvision centralized management
Supports software upgrade by SFTP/HTTP
Supports Power alarm, IP/MAC conflict alarm, Memory/CPU usage alarm, Port alarm, Ring alarm, Port traffic alarm, CRC error and packet lose alarm, SFP port RX power alarm and TX power alarm
Supports DDM (SFP port)
Supports loop detection
Supports RMON
Supports port mirroring
Supports Syslog
Supports LLDP
Supports Link-check
IP ManagementSupports DHCP server/snooping/client, DHCP Option 82
Supports ARP
Clock ManagementSupports SNTP Client
Supports PTP v2 (Hardware & Software)
Technical SpecificationTechnical ParameterIEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-T and 100Base-FX)
IEEE 802.3ab (1000Base-T)
IEEE 802.3z (1000Base-SX/LX)
IEEE 802.3ad (Link aggregation)
IEEE 802.3x (Flow control)
IEEE 802.1p (Class of Service)
IEEE 802.1Q (VLAN)
IEEE 802.1d (STP)
IEEE 802.1w (RSTP)
IEEE 802.1s (MSTP)
IEEE 802.1x (Network Access Control)
IEEE 802.1ab (LLDP)
IEEE1588 (PTP V2)
IEEE 802.1AS
IEEE 802.1Qbv
IEEE 802.1Qbu
IEEE 802.1Qci
IEEE 802.1CB
Switch PropertiesPriority Queues 8
Number of VLANs 4K
VLAN ID 1～4094
Number of Multicast Groups 8K
MAC Table 16K
Packet Buffer 1Mbit
Switching Delay <5μs
Jumbo frame 9.6KB
InterfacePorts:
16x 10/100/1000BASE-T(X) M12 X-Code ports, 8x 10/100/1000BASE-T(X) M12 X-Code PoE ports, Supports 2 pairs Bypass(Optional);
4x 10/100/1000BASE-T(X) M12 X-code ports; 12x 10/100BASE-T(X) M12 D-code ports, 8x 10/100BASE-T(X) M12 D-Code PoE ports, Gigabit ports support Bypass(Optional);
4x 10/100/1000BASE-T(X) M12 X-Code ports, 20x 10/100BASE-T(X) M12 D-Code ports, Gigabit ports support Bypass(Optional);
Console Port: Console Port RS232 - M12 A-coded connector
Alarm Contact: M12 A-coded connector
LEDLEDs on Front Panel
Running LED: Run
Alarm LED: Alarm
Power LED: PWR1,PWR2
Ring LED: Ring
Interface LED: Link/ACT
Power Requirements

Power Input
110VDC - M23 connector (for switch power supply)

Power Terminal
M23 connector

Power Consumption
<40W@110VDC without PoE
<100W@110VDC with PoE

Overload Protection Support
Reverse Connection Protection Support
Redundancy Protection Support

Physical Characteristics

Housing Metal
Cooling Natural convection, fanless
Protection Class IP65
Dimension
380mm×189mm×92.6mm (W×H×D)

Weight
4.5Kg

Mounting Panel Mounting

Environmental LimitOperating Temperature -40℃～+75℃
Storage Temperature -40℃～+85℃
Ambient Relative Humidity 5～95% (non-condensing)
WarrantyMTBF >300000h
Warranty 5 years
ApprovalsCE/FCC
EN50121, EN45545-2
EN62368-1, EN50155、EN50121-1、EN50121-4
Industrial StandardEMI:
FCC CFR47 Part 15,EN55022/CISPR22,Class A
EMS:
EN50121
Machinery:
IEC60068-2-6 (vibration)
IEC60068-2-27 (shock)
IEC60068-2-32 (free fall)
Climatic environmental:
IEC60068-2-1 Cold test
IEC60068-2-2 Dry heat test
IEC60068-2-14 Change of temperature test
IEC60068-2-30 Damp heat cyclic test

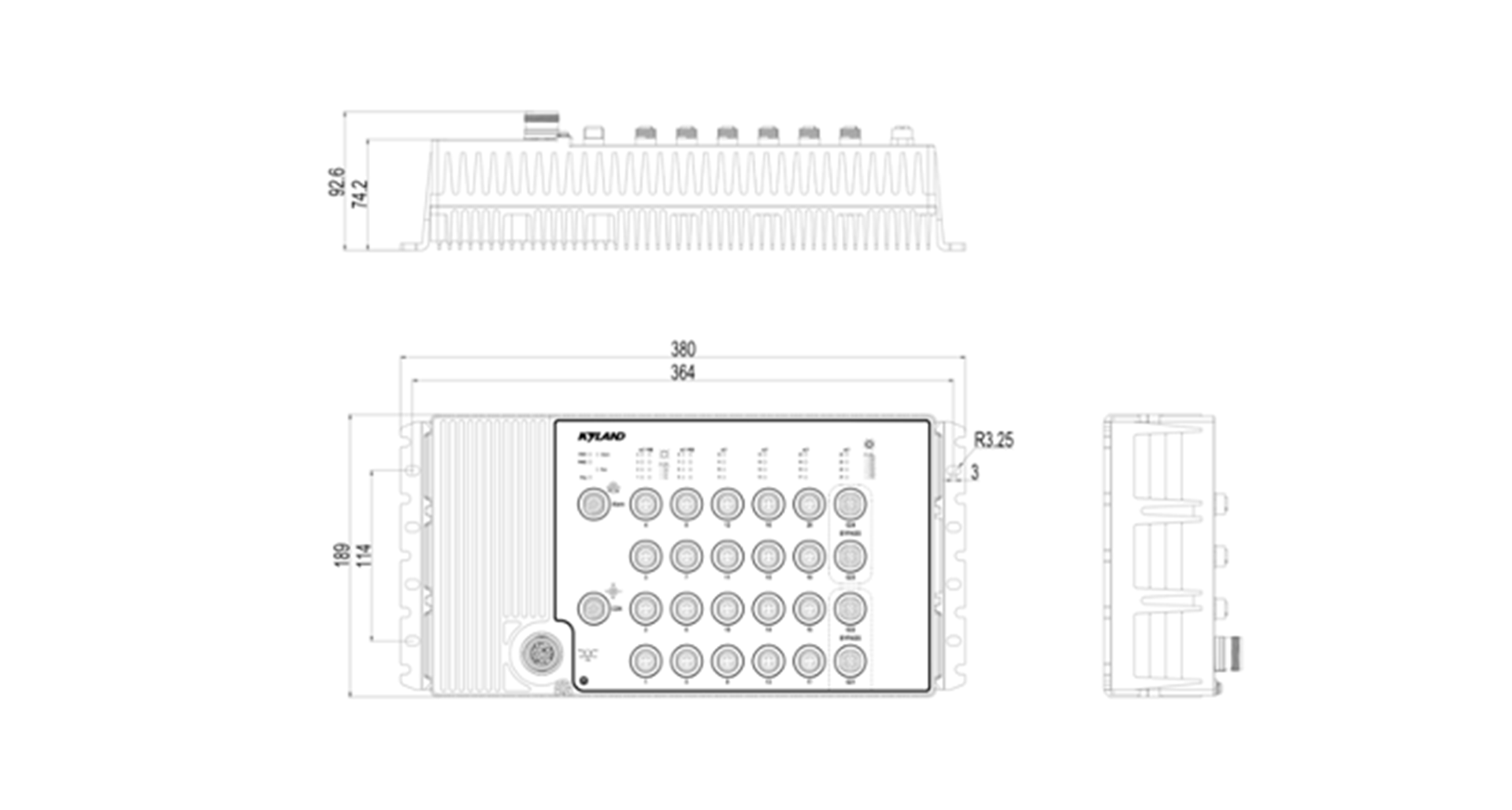

Mechanical Drawing
Ordering Information
ModelAquam8124TSN-Ports-PS1-PS2
Aquam8124TSN-B-Ports-PS1-PS2
Code DefinitionCode Selection
Bypass FunctionSupport Bypass
Ports16GE8GP: 16x 10/100/1000BASE-T(X) M12 ports, 8x 10/100/1000BASE-T(X) M12 PoE ports
4GE12T8P: 4x 10/100/1000BASE-T(X) M12 ports; 12x 10/100BASE-T(X) M12 ports, 8x 10/100BASE-T(X) M12 PoE ports
4GE20T: 4x 10/100/1000BASE-T(X) M12 ports; 20x 10/100BASE-T(X) M12 ports
Power SupplyH6-H6 = 72-110VDC (50.4-137.5VDC), redundancy power supply
