Ethernet Module
Ethernet Module
Product Overview
Ethernet modules are specifically designed for the SICOM3028GPT series to provide Ethernet data switching. These modules support Gigabit/fast Ethernet fiber/copper port, fast Ethernet fiber port supports single/multi mode and ST/SC/FC connector.
Key Features
- Designed for the SICOM3028GPT series, managed by SICOM3028GPT chassis
- 1U or 0.5U structures, supports Gigabit/fast Ethernet, fiber/copper
- Supports hot-swap for easy maintenance (only can replace the same type of module)
Specifications
| Product Specifications | Standard | IEEE 802.3i(10Base-T) IEEE 802.3u(100Base-TX and 100Base-FX) IEEE 802.3ab(1000Base-T) IEEE 802.3z(1000Base-SX/LX) |
|---|---|---|
| Interface | Gigabit ports: 1000Base-X, 100Base-FX, SFP port 10/100/1000Base-T(X), RJ45 port Fast Ethernet ports: 100Base-FX, single/multi mode, SC/ST/FC connector 100Base-FX, SFP port(LC connector) 10/100Base-T(X), RJ45 port | |
| LED | Port LED: Link/ACT Port speed LED: Speed | |
| Physical Characteristics | Housing: Metal Cooling: Natural cooling, fanless Dimensions(WxHxD): 1U:50.8mm×41.1mm×109.2mm(2×1.62×4.30 in.) 0.5U:122.6mm×20.25mm×106.6mm(4.83×0.80×4.20 in.) Weight: 0.3Kg (0.661 pound) | |
| Environmental limits | Operating temperature: -40°C to +85°C (-40°F to 185°F) Storage temperature: -40°C to +85°C (-40°F to 185°F) Ambient Relative Humidity: 5% to 95% (non-condensing) | |
| Power Requirements | Power input: 3.3VDC Power terminal: A type interface (powered by backplane) Power consumption: <3W | |
| Quality assurance | Warranty: 5 years |

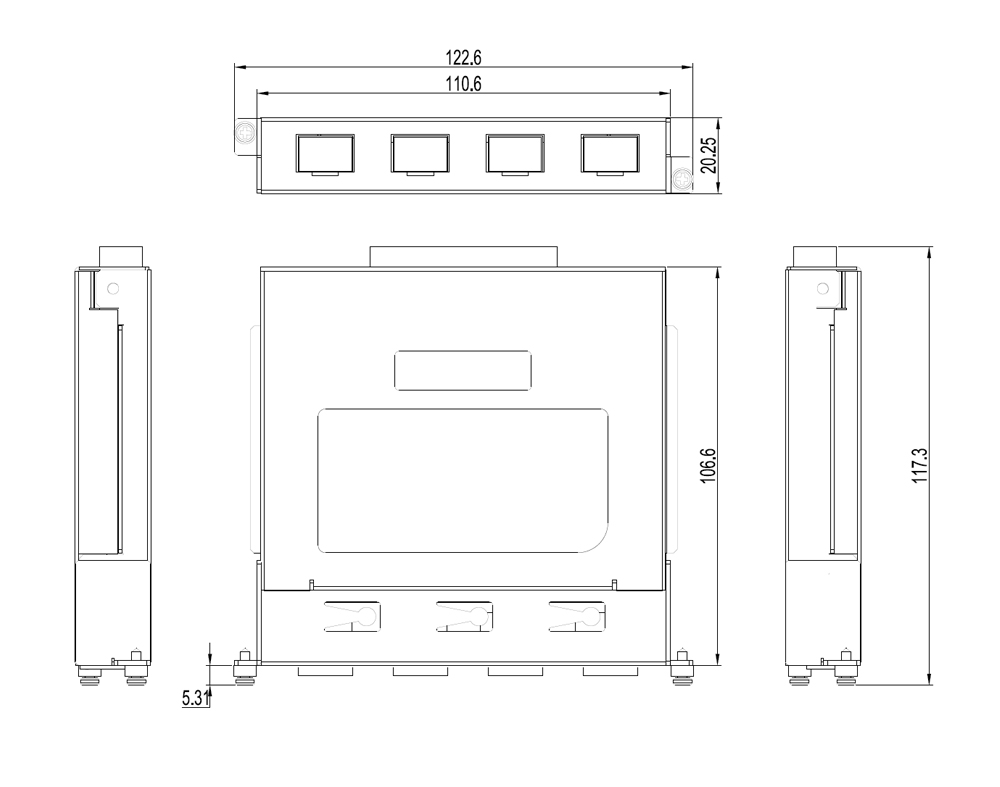

Mechanical Drawing
Ordering Information
| Model | Description |
|---|---|
| Slot 2-7 on SICOM3028GPT | |
| SM6.6-4GE-0.5U | 4x10/100/1000Base-T(X) RJ45 port |
| SM6.6-4GX-0.5U | 4x1000Base-X, 100Base-FX SFP port |
| SM6.6-4GX-DDM-0.5U | 4x1000Base-X, 100Base-FX SFP port, DDM |
| SM6.6-4SFP-DDM-0.5U | 4x100Base-FX SFP port, DDM |
| SM6.6-4M-SC05-0.5U | 4x100Base-FX fiber port, multi-mode SC connector, 5km |
| SM6.6-4M-ST05-0.5U | 4x100Base-FX fiber port, multi-mode ST connector, 5km |
| SM6.6-4M-FC05-0.5U | 4x100Base-FX fiber port, multi-mode FC connector, 5km |
| SM6.6-4S-SC40-0.5U | 4x100Base-FX fiber port, single-mode SC connector, 40km |
| SM6.6-4S-ST40-0.5U | 4x100Base-FX fiber port, single-mode ST connector, 40km |
| SM6.6-4S-FC40-0.5U | 4x100Base-FX fiber port, single-mode FC connector, 40km |
| SM6.6-4S-SC60-0.5U | 4x100Base-FX fiber port, single-mode SC connector, 60km |
| SM6.6-4S-SC80-0.5U | 4x100Base-FX fiber port, single-mode SC connector, 80km |
| SM6.6-4T-0.5U | 4x10/100Base-T(X) RJ45 port |
| SM6.6-2GX2GE-0.5U | 2x1000Base-X, 100Base-FX SFP port, 2x10/100/1000Base-T(X) RJ45 port |
| SM6.6-2GX2M-SC05-0.5U | 2x1000Base-X, 100Base-FX SFP port, 2x100Base-FX fiber port, multi-mode SC connector, 5km |
| SM6.6-2GX2M-ST05-0.5U | 2x1000Base-X, 100Base-FX SFP port, 2x100Base-FX fiber port, multi-mode ST connector, 5km |
| SM6.6-2GX2M-FC05-0.5U | 2x1000Base-X, 100Base-FX SFP port, 2x100Base-FX fiber port, multi-mode FC connector, 5km |
| SM6.6-2GX2S-SC40-0.5U | 2x1000Base-X, 100Base-FX SFP port, 2x100Base-FX fiber port, single-mode SC connector, 40km |
| SM6.6-2GX2S-ST40-0.5U | 2x1000Base-X, 100Base-FX SFP port, 2x100Base-FX fiber port, single-mode ST connector, 40km |
| SM6.6-2GX2S-FC40-0.5U | 2x1000Base-X, 100Base-FX SFP port, 2x100Base-FX fiber port, single-mode FC connector, 40km |
| SM6.6-2GX2S-SC60-0.5U | 2x1000Base-X, 100Base-FX SFP port, 2x100Base-FX fiber port, single-mode SC connector, 60km |
| SM6.6-2GX2S-SC80-0.5U | 2x1000Base-X, 100Base-FX SFP port, 2x100Base-FX fiber port, single-mode SC connector, 80km |
| SM6.6-2M2T-SC05-0.5U | 2x10/100Base-T(X) RJ45 port, 2x100Base-FX fiber port, multi-mode SC connector, 5km |
| SM6.6-2M2T-ST05-0.5U | 2x10/100Base-T(X) RJ45 port, 2x100Base-FX fiber port, multi-mode ST connector, 5km |
| SM6.6-2M2T-FC05-0.5U | 2x10/100Base-T(X) RJ45 port, 2x100Base-FX fiber port, multi-mode FC connector, 5km |
| SM6.6-2S2T-SC40-0.5U | 2x10/100Base-T(X) RJ45 port, 2x100Base-FX fiber port, single-mode SC connector, 40km |
| SM6.6-2S2T-ST40-0.5U | 2x10/100Base-T(X) RJ45 port, 2x100Base-FX fiber port, single-mode ST connector, 40km |
| SM6.6-2S2T-FC40-0.5U | 2x10/100Base-T(X) RJ45 port, 2x100Base-FX fiber port, single-mode FC connector, 40km |
| SM6.6-2S2T-SC60-0.5U | 2x10/100Base-T(X) RJ45 port, 2x100Base-FX fiber port, single-mode SC connector, 60km |
| SM6.6-2S2T-SC80-0.5U | 2x10/100Base-T(X) RJ45 port, 2x100Base-FX fiber port, single-mode SC connector, 80km |
| Slot 1 on SICOM3028GPT | |
| SM6.6-4GE-1U | 4x10/100/1000Base-T(X) RJ45 port |
| SM6.6-4GX-1U | 4x1000Base-X SFP port |
| SM6.6-4GX-DDM-1U | 4x1000Base-X SFP port, DDM |
| SM6.6-2GX2GE-1U | 2x10/100/1000Base-T(X) RJ45 port, 2x1000Base-X SFP port |
