LED Module
LED Module
Product Overview
The LED module is specially designed for the SICOM3028GPT series to provide several LEDs that show the status of switch and its ethernet ports.
Key Features
- Designed for the SICOM3028GPT series, managed by SICOM3028GPT chassis
- 0.5U structures, for slot 7 only
Specifications
| LED | Port LED: Link Alarm LED: Alarm Running LED: Run Power LED: PWR1, PWR2 |
| Physical Characteristics | Housing: Metal Cooling: Natural cooling, fanless Dimensions(WxHxD): 122.6mm×20.25mm×106.8mm(4.83×0.80×4.20 in.) Weight: 0.3Kg (0.661 pound) |
| Environmental Limits | Operating temperature: -40°C to +85°C (-40°F to 185°F) Storage temperature: -40°C to +85°C (-40°F to 185°F) Ambient Relative Humidity: 5% to 95% (non-condensing) |
| Power Requirements | Power input: 3.3VDC Power terminal: A type interface (powered by backplane) Power consumption: <3W |
| Quality Assurance | Warranty: 5 years |

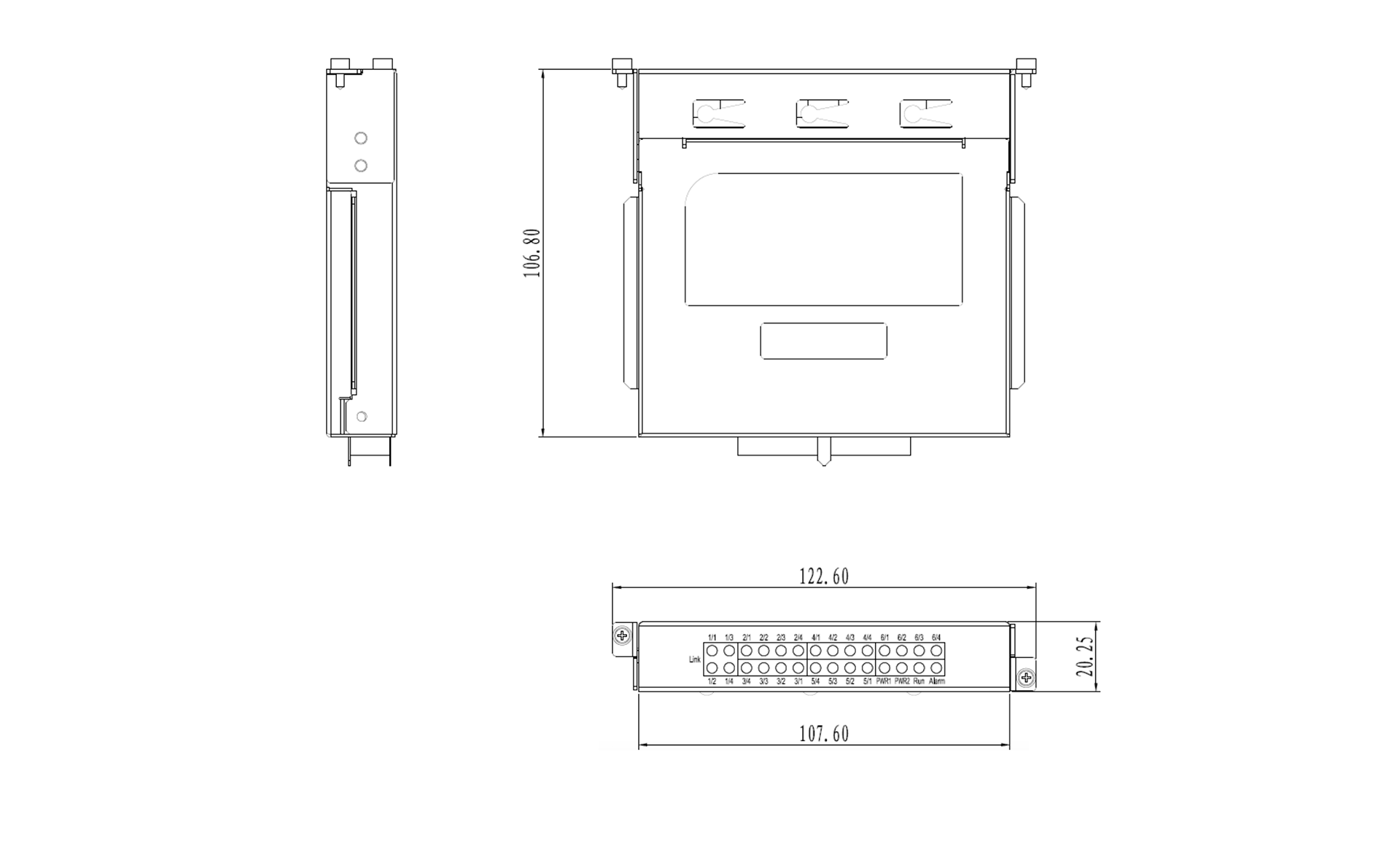

Mechanical Drawing
Ordering Information
| Model | Description |
| SM6.6-LED-0.5U | LED module, for slot 7 only, with Port link LED, Alarm LED, Running LED and Power LED |
Downloads
| Name | Type | File Size | |
|---|---|---|---|
Kyland_LED Module_Datasheet | Datasheet |
