Product Overview
M12 A-Coding 4 Pin male screw clamp connection cable connector
Specifications
Product SpecificationsElectrical SpecificationRated voltage 250 V
Rated impulse voltage 2500 V
Rated current (40 °C) 4 A
Contact resistance ≤ 3 mΩ
Physical CharacteristicsProtection class IP67
Connector locking system Screw-locking
Connector Type A-Coding, 4 Pin, male
Contact plating Au (gold)
Cable Outlet 6-8 mm
Shielding Ring Support
Mechanical Operation > 100 mating cycles
Environmental LimitsOperating Temperature -40 to 85℃ (-40 to 185°F)
Storage Temperature -40 to 85℃ (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Quality AssuranceWarranty period 2 years

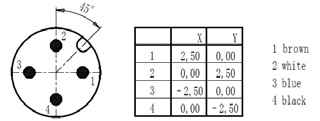

Mechanical Drawing
Ordering Information
M12-A-4P-MMale cable connector with M12, A-Coding, 4 Pin
Downloads
NameTypeFile Size
M12-A-4P-M
Datasheet
Download
