M12-D-4P-M
M12 D-Coding 4 Pin male screw clamp connection cable connector
Product Overview
This connector is suitable for 10/100Mbit/s Ethernet M12 connections and is designed to be used for Kyland Aquam series products.
Specifications
| Product Specifications | Electrical Specification | Rated voltage 250 V Rated impulse voltage 2500 V Rated current (40 °C) 4 A Contact resistance ≤ 3 mΩ |
|---|---|---|
| Physical Characteristics | Protection class IP67 Connector locking system Screw-locking Connector Type D-Coding, 4 Pin, male Contact plating Au (gold) Cable Outlet 6-8 mm Shielding Ring Support Mechanical Operation > 100 mating cycles | |
| Environmental Limits | Operating Temperature -40 to 85℃ (-40 to 185°F) Storage Temperature -40 to 85℃ (-40 to 185°F) Ambient Relative Humidity 5 to 95% (non-condensing) | |
| Quality assurance | Warranty period 2 years |

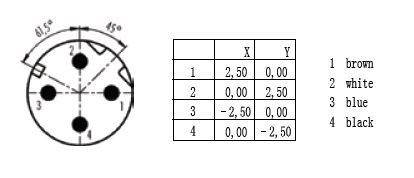

Mechanical Drawing
Ordering Information
| Product Model | Product Description |
|---|---|
| M12-D-4P-M | Male cable connector with M12, D-Coding, 4 Pin |
Downloads
| Name | Type | File Size | |
|---|---|---|---|
M12-D-4P-M | Datasheet |
