Product Overview

SICOM3000L is Layer 2 DIN-Rail Managed Industrial Ethernet Switch. It provides 4 10/100/1000Base-X SFP ports, 8 10/100/1000Base-T or 16 10/100/1000Base-T copper ports , 24/48 dual power input. SICOM3000L supports DT- Ring (recovery time<50ms), DRP/DHP (recovery time<20ms), STP/RSTP/MSTP, VLAN, Multicast , QoS, SSH and many other.

Layer 2 software features, and supports CLI, Telnet, Web management methods, Kyvision centralized management based on SNMPv1/v2c/v3. SICOM3000L is especially designed for harsh environments with wide operating temperature range, EMC level 3, IP40 protection class, strong vibration - resistent mounting clip for DIN-Rail installation, and can be deployed in Factory automation, Transportation, Oil & gas, wind power, distribution network automation and many other industrial applications.

Key Features
  • Supports 4 100Base-X, 1000Base-X SFP ports, 8 10/100/1000Base-T or 16 10/100/1000Base-T copper ports
  • Supports Redundancy protocols: DT-Ring (recovery time<50ms), DRP/DHP (recovery time<20ms),
  • Supports Network Security: HTTPS/SSL, SSH, TACACS+, IEEE802.1X, Radius, User Classification, MAC address
    binding with switch ports
  • Supports CLI, Telnet, WEB management methods, Kyvision centralized management based on
  • SNMPv1/v2c/v3
  • Supports DDM(SFP port)
  • Supports IP40 protection
Software FunctionsSwitchingSupports VLAN, PVLAN
Supports GVRP
Supports port aggregation, LACP
Supports port flow control
Supports Rate limit based on flow (ACL Rate Limiter)
Supports Global broadcast storm suppression (QOS Storm Policing)
MulticastSupports IGMP snooping
Supports GMRP
Supports static multicast
Routing protocolSupports static routing
Network SecuritySupports HTTPS/SSL
Supports SSH
Supports TACACS+
Supports IEEE802.1X
Supports RADIUS
Supports User Classification
Service QualitySupports QoS, 802.1p(CoS, DSCP
Supports SP, WRR queue scheduling
Supports ACL
Management and MaintenanceSupports Console, Telnet, WEB management methods
Supports SNMPv1/v2c/v3, Kyvision centralized management
Kytools IP manager management
Supports software upgrade by FTP/TFTP
Supports Power alarm, IP/MAC conflict alarm, Memory/CPU usage alarm, Port alarm, Ring alarm, Port traffic alarm, CRC error and packet lose alarm, SFP port RX power alarm and TX power alarm Supports DDM (SFP port)
Supports loop detection
Supports RMON
Supports port mirroring
Supports Syslog
Supports LLDP
Supports Link-check
IP ManagementSupports DHCP server/snooping/client
Supports DHCP relay
Supports DHCP option82/66/67
Clock ManagementSupports SNTP Client
Supports NTPv4 Server & Client
RedundancySupports DT-Ring, DT-Ring+, DT-VLAN with the recovery time<50ms Supports DRP/DHP with the recovery time<20ms
Technical SpecificationInterfaceGigabit Port
100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP slot
10/100/1000Base-T(X), RJ45 port, Auto MDI/MDI-X connection
Console Port RJ45, RS232
Alarm Contact 3-pin 5.08mm-spacing plug-in terminal block, 250VAC/220VDC Max, 2A Max
Switch PropertiesPriority Queues 8
Number of VLANs 4K
VLAN ID 1~4094
Number of Multicast Groups 8K
MAC Table 8K
Packet Buffer 4Mbit
Packet Forwarding Rate
17.9Mpps (4GX8GE)
29.8Mpps (4GX16GE)
Switching Delay <5μs
Jumbo frame 9.6KB
LEDLEDs on Front Panel
Running LED: Run
Alarm LED: Alarm
Power LED: PWR1,PWR2
Ring LED: Ring
Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT(Fiber port)
ButtonReset: Reboot and restore default configuration
Power RequirementPower Input

Power Terminal
5-pin 5.08 mm-spacing plug-in terminal block (L2/L5)
3-pin 7.62 mm-spacing plug-in terminal block (HV)

Power Consumption
<16W (4GX8GE)
<20W (4GX16GE)
Overload Protection Support
Reverse Protection Support
Redundancy Protection Support (24/48VDC)
Physical CharacteristicsHousing Metal
Cooling Natural convection, fanless
Protection Class IP40
88mm×135mm×137mm (4GX8GE) (W×H×D)
102mm×135mm×137mm (4GX16GE) (W×H×D)


1.5Kg (4GX8GE)
1.9Kg (4GX16GE)
Mounting DIN-Rail or Panel Mounting
Environmental LimitOperating Temperature -40℃~+75℃
Storage Temperature -40℃~+85℃
Ambient Relative Humidity 5~95% (non-condensing)
1317486h (4GX8GE)
1097144h (4GX16GE)
Warranty 5 years
ApprovalsCE, FCC(Pending)
EMC: EN 55032/35, EN 61000-6-4, EN 61000-6-2
Rail Traffic: EN 50121-4
IEC 62368-1, EN 62368-1
Industrial StandardEMI:
FCC CFR47 Part 15,EN55032/CISPR22,Class A
IEC61000-4-2(ESD) ±6kV(contact),±8kV(air)
IEC61000-4-3(RS) 10V/m(80MHz~2GHz)
IEC61000-4-4(EFT) Power Port:±2kV;Data Port:±1kV
IEC61000-4-5(Surge) Power Port:±1kV/DM,±2kV/CM;Data Port:±1kV IEC61000-4-6(CS) 10V(150kHz~80MHz)
IEC60068-2-6 (vibration)
IEC60068-2-27 (shock)
IEC60068-2-32 (free fall)
Climatic environmental:
IEC60068-2-1 Cold test
IEC60068-2-2 Dry heat test
IEC60068-2-14 Change of temperature test
IEC60068-2-30 Damp heat cyclic test

Technical ParameterStandard
IEEE 802.3i (10Base-T
IEEE 802.3u (100Base-T and 100Base-FX
IEEE 802.3ab (1000Base-T
IEEE 802.3z (1000Base-SX/LX
IEEE 802.3ad (Link aggregation
IEEE 802.3x (Flow Control
IEEE 802.1p (Class of Service)
IEEE 802.1Q (VLAN)
IEEE 802.1d (STP) IEEE 802.1w (RSTP)
IEEE 802.1s (MSTP)
IEEE 802.1x (Network Access Control
IEEE 802.1ab (LLDP)

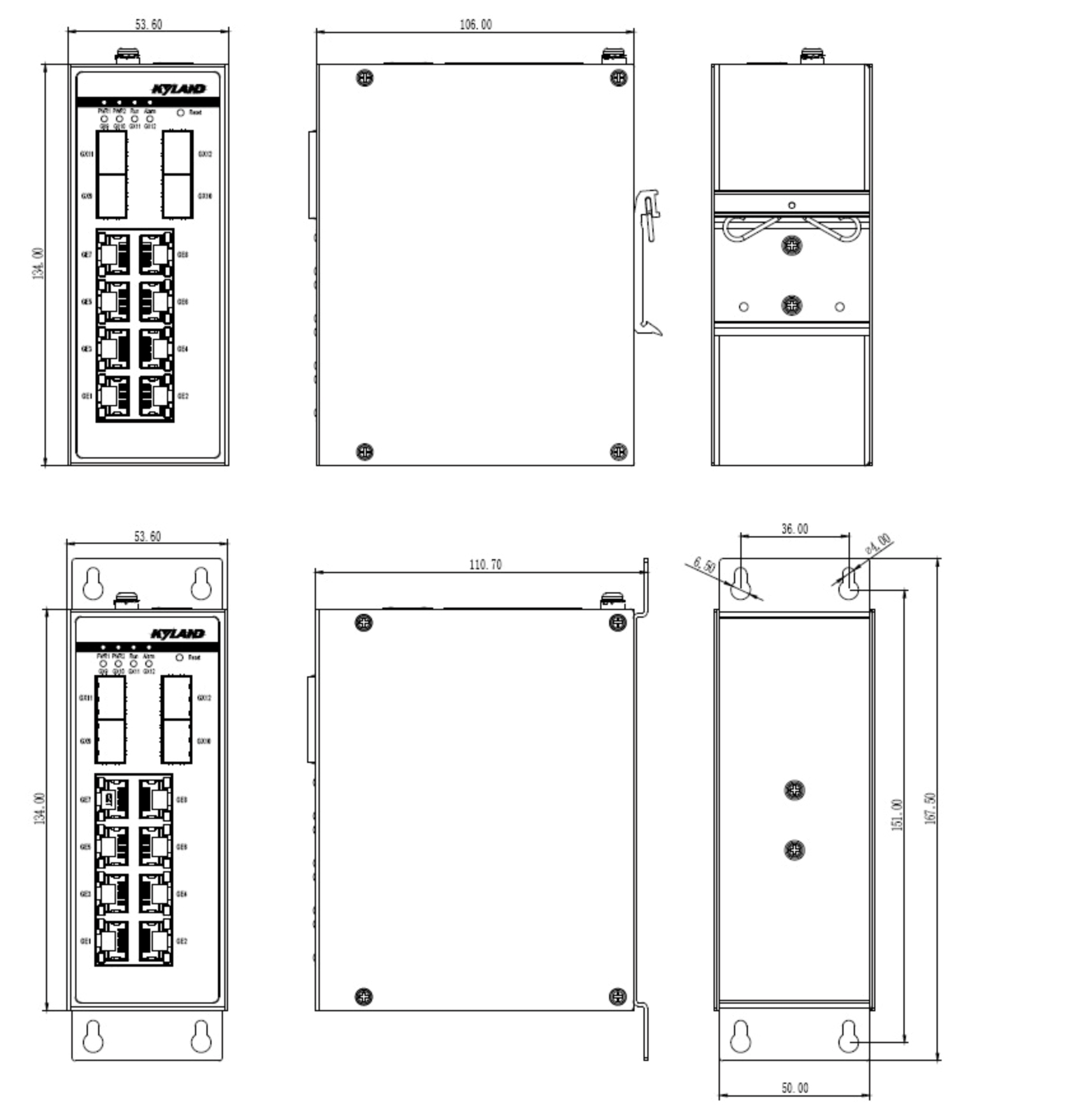

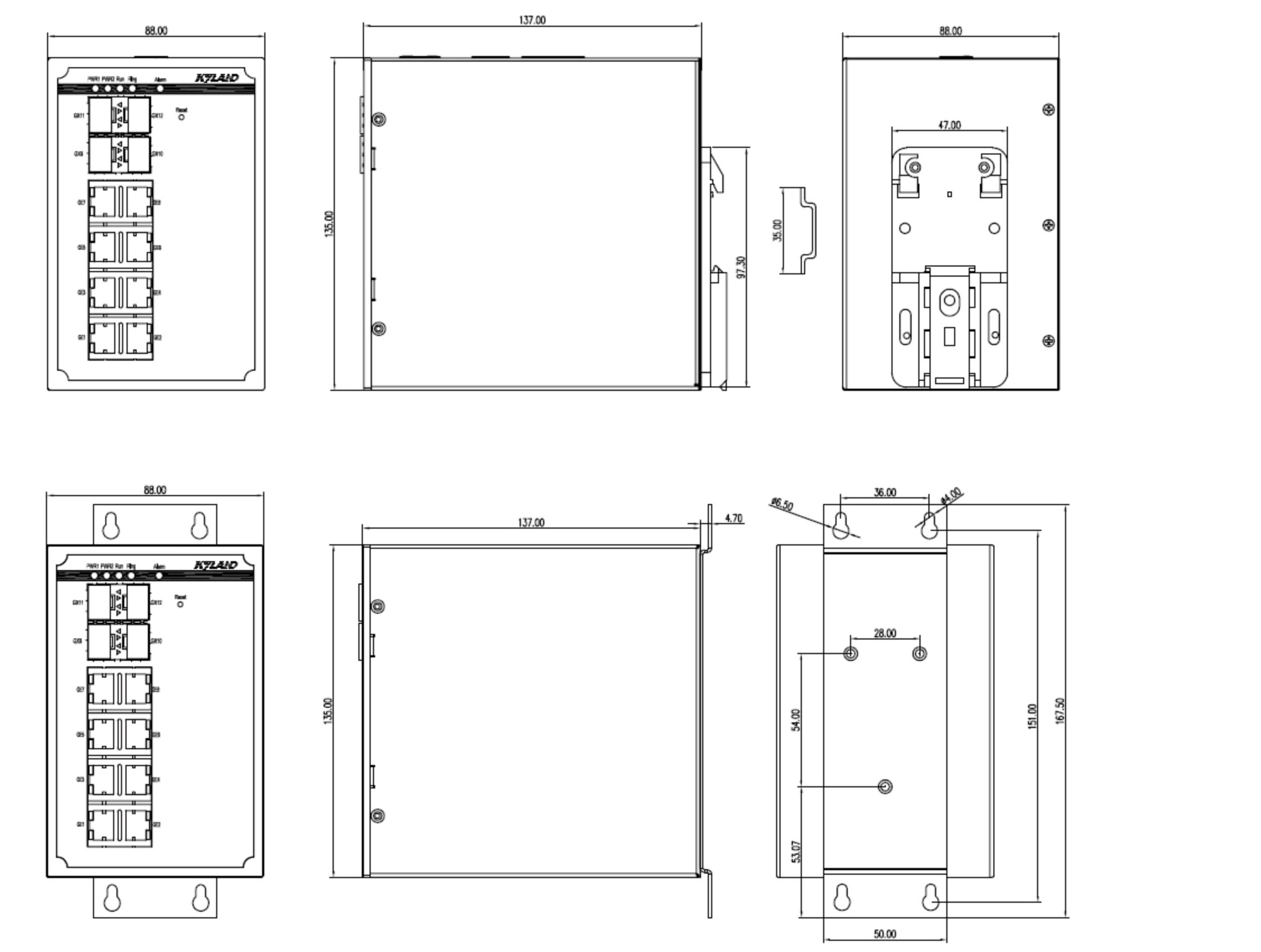

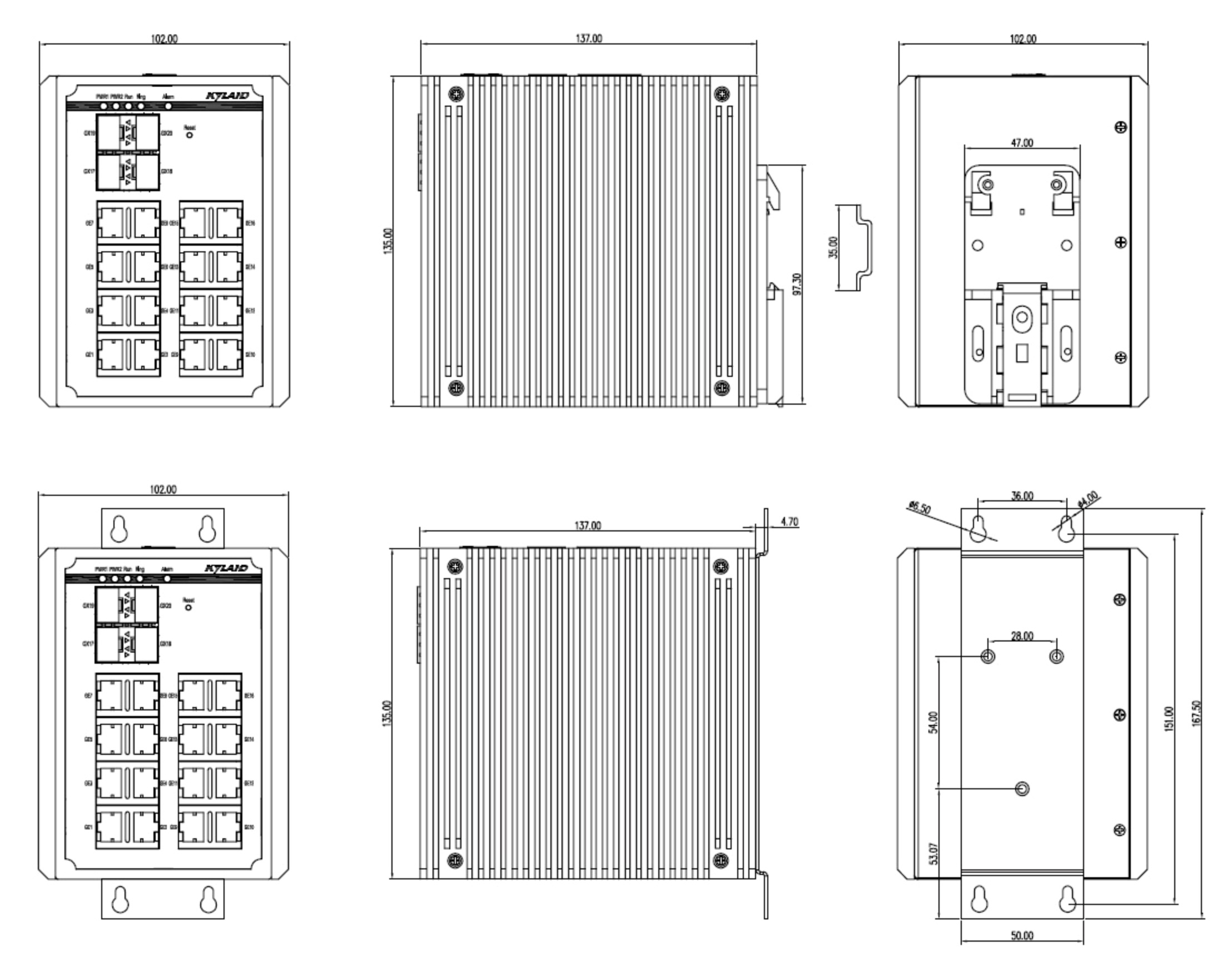

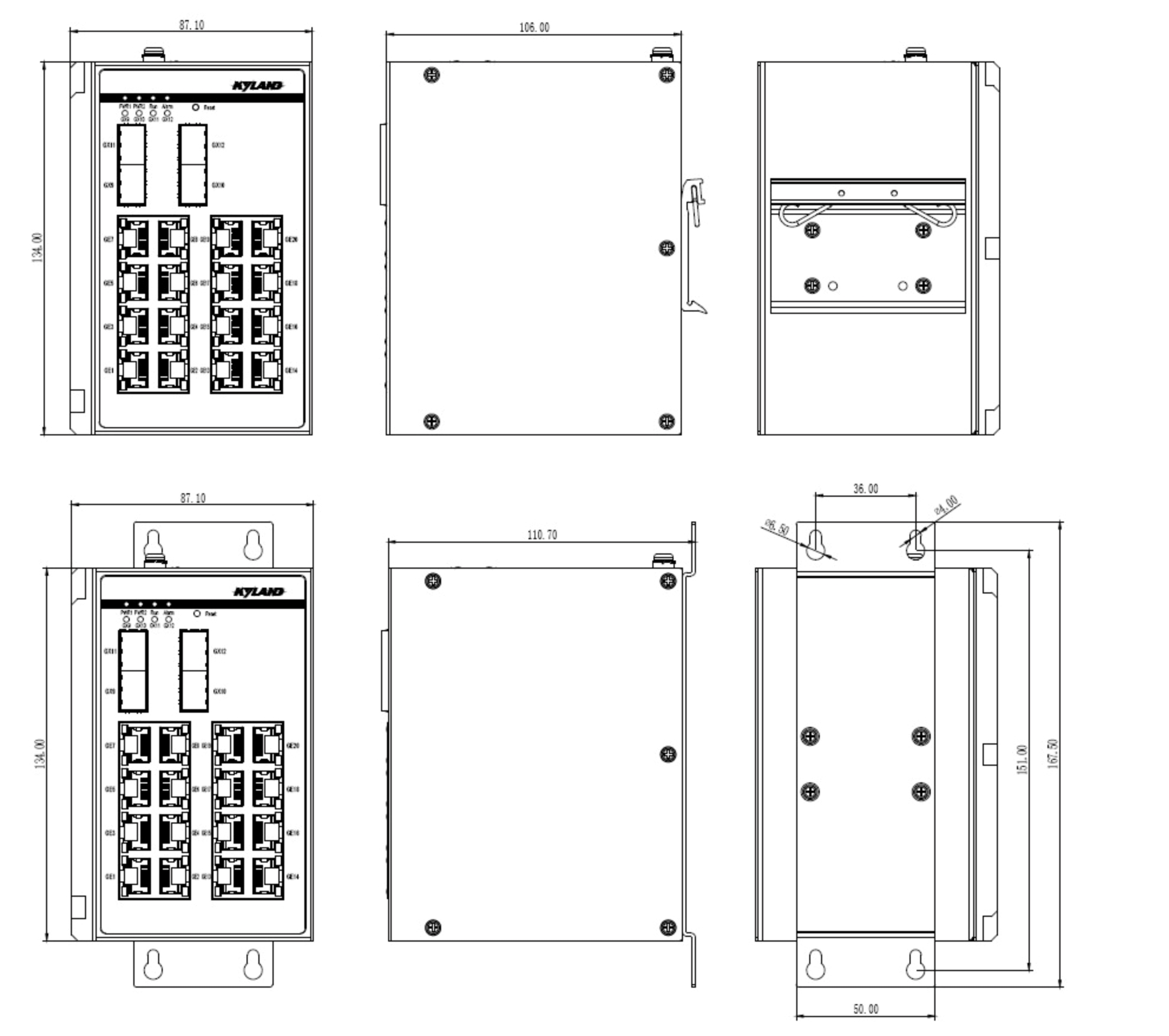

Mechanical Drawing
Ordering Information
Product ModelSICOM3000L-Ports-PS1-PS2
Code definitionCode selection


4GX8GE= 4×100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP ports;

4GX16GE= 4×100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP ports;
16×10/100/1000Base-T(X) RJ45 ports

L2-L2=24-48VDC (18-72VDC), redundant power inputs
L5-L5=12-24VDC (9-36VDC), redundant power inputs
HV=100-240VAC,50/60Hz;110-220VDC(85-264VAC/77-300VDC), single power input
Accessories ModelDescription
SFP moduleSee the selection table of industrial SFP module.
DT-BGAZ-02Panel for panel mounting
DT-FCZ-RJ45-01Single-port RJ45 dust plug
