NewPreA5102
Medium-sized Smart Controller
Product Overview
NewPreA5102 is a medium-sized smart controller designed for the high-end equipment and intelligent production line market. It seamlessly integrates logic control (PLC), motion control (MC), machine vision, HMI, database, and customer applications into a single controller hardware. The controller also provides an open secondary development interface, enabling users to easily and efficiently design low-cost, safe, and reliable industrial control solutions.
Key Features
- Integrated display, vision, control, and customer applications
- Shared memory for efficient interaction
- Compact size for extreme space efficiency
- System isolation ensures device security
- Integrated machine vision and control application
- Industry algorithm library
- Powerful motion control function
- Windows compatible ecosystem, easy expansion and integration
- Fusion CODESYS Ecology
Specifications
| Specification | Detail | |
|---|---|---|
| General Information | Dimension | 47 × 134 × 116mm (W × H × D) |
| Weight | <1 kg | |
| Cooling Method | Heat sink, no fan | |
| Mounting Method | DIN Rail / Wall Mount | |
| Environment | Operation Temperature | -10°C ~ 55°C |
| Store Temperature | -40°C ~ 80°C | |
| Humidity | 10% ~ 95%RH | |
| Altitude | ≤2000m | |
| Standards | IP Rating | IP20 |
| EMC | Class 3A | |
| Shock | IEC 60068-2-27 | |
| Vibration | IEC 60068-2-6 | |
| Hardware | CPU | Intel®Celeron®J6412 |
| RAM | 8GB | |
| Storage | 256GB | |
| Ethernet | LAN × 3（RJ45） | |
| USB | USB3.0 × 3 | |
| Serial Port | RS485 × 1, RS232/485 × 1 | |
| Video Port | HDMI × 1 | |
| I/Os | ON x 1, RL x 1 | |
| LEDs | LED x 4 (PWR, RUN, HDD, USER) | |
| Retentive Memory | 25kb | |
| Power | Input Voltage | 24VDC (±10%) with overcurrent protection |

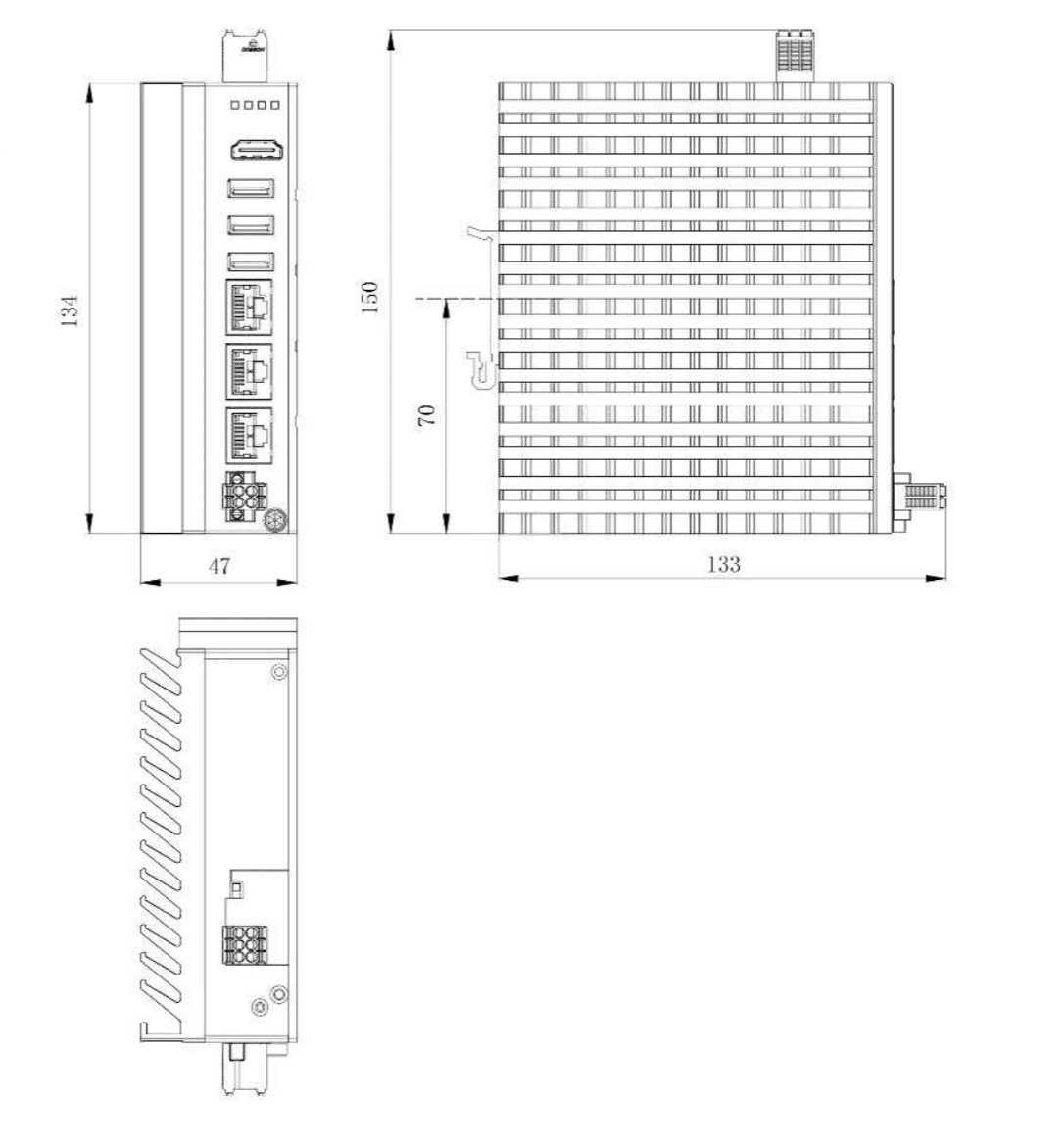

Mechanical Drawing
Ordering Information
| Product Model | Details |
|---|---|
| A5102-3104 | Processor J6412, 8G memory, 256G solid state drive, Intel operating system, CODESYS, Windows desktop |
| A5102-3404 | Processor J6412, 8G memory, 256G solid state drive, Intel operating system, CODESYS, no desktop |
Downloads
| Name | Type | File Size | |
|---|---|---|---|
Kyland_NewPreA5102_Datasheet | Datasheet |
