Opal5G
5G port entry-level full gigabit unmanaged DIN-Rail switches.
Product Overview
Opal5G series, Kyland produced 5-port unmanaged switches, are characterized by its full Gigabit interface, compact size, economical and plug-and-play design, generally used to connect the high bandwidth Ethernet in factory automation, petrochemical, ITS, and other applications. Opal5G support 5 10/100/1000Base-TX RJ45 ports, along with metal housing with IP30 protection class, thus ensuring fast and reliable data transmission in harsh industrial environments. The two DIP-switches located on the top of the device are used to enable/disable Broadcast Storm Protection (BSP) function and Jumbo frame transmission function, respectively. Opal5G provide both standard (-10°C to 60°C) and wide (-40°C to 75°C) operating temperature range models to meet different applications.
Key Features
- Support 5 10/100/1000Base-TX RJ45 ports
- Setting jumbo frame transmission function (up to 10KB) by DIP-Switch
- Both standard and wide operating temperature models are available
- IP30 protection class
- CE, FCC, UL61010, Class I Div 2, IECEx, ATEX Zone 2, Ex ec IIC T4 Gc
Specifications
| Technical Specification | Standard | IEEE 802.3i (10Base-T) IEEE 802.3u (100Base-TX) IEEE 802.3ab(1000Base-T) |
|---|---|---|
| Switch Properties | MAC Table: 8K Packet Buffer: 1Mbit Packet Forwarding Rate: 7.4 Mpps Switching Delay:<5μs Jumbo Frame Size: 10KB | |
| Interface | Gigabit Port: 10/100/1000Base-T(X), RJ45 port | |
| LED | LEDs on Front Panel Power LED: PWR1, PWR Interface LED: Link/ACT, Speed (RJ45 port) | |
| DIP-Switch | Enable/Disable broadcast storm protection function Enable/Disable Jumbo frame transmission function (up to 10KB) | |
| Power Requirements | Power Input: 12-48VDC/18-30VAC Power Terminal: 4-pin 5.08mm-spacing plug-in terminal block Power Consumption:<6w Overload Protection: Support Reverse Protection: Support Redundancy Protection: Support | |
| Physical Characteristics | Housing: Metal Cooling: Natural convection, fanless Protection Class: IP30 Dimension: 30mm×115mm×68mm (W×H×D) Weight: 0.3Kg Mounting: DIN-Rail or Panel mounting | |
| Environmental Limits | Operating Temperature: -10°C to +60°C(Opal5G-E) -40°C to +75°C Storage Temperature: -40°C to +85°C Ambient Relative Humidity: 5°C 95% (non-condensing) | |
| Quality Assurance | MTBF: 3,300,013 hrs Warranty: 5 years | |
| Approvals | CE, FCC, UL61010, Class I Div 2, IECEx, ATEX Zone 2, Ex ec IIC T4 Gc | |
| Industry Standard | EMI: FCC CFR47 Part 15,EN55022/CISPR22,Class A EMS: IEC61000-4-2(ESD): ±6kV (contact), ±8kV (air) IEC61000-4-3(RS): 10V/m (80MHz–2GHz) IEC61000-4-4(EFT): Power Port: ±2kV; Data Port: ±1kV IEC61000-4-5(Surge): Power Port: ±1kV/DM, ±2kV/CM; Data Port: ±2kV IEC61000-4-6(CS): 10V (150kHz–80MHz) Machinery: IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) |

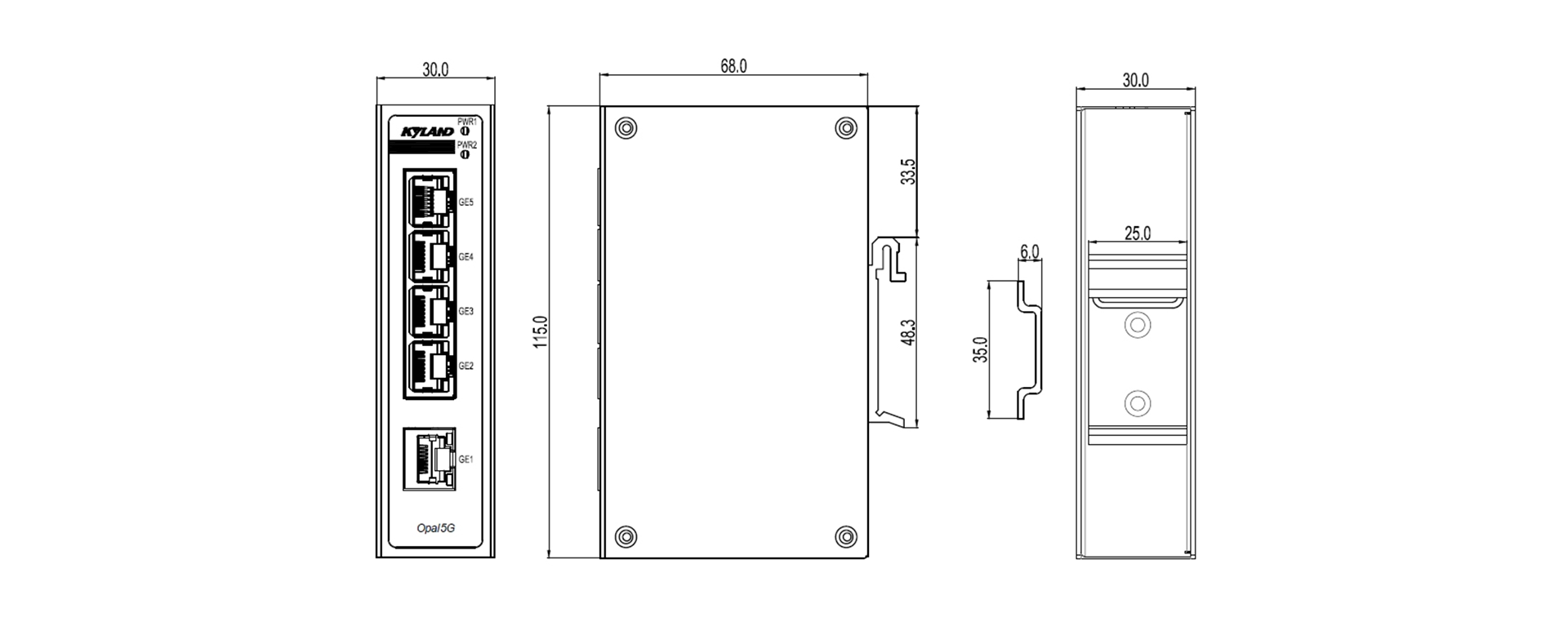

Mechanical Drawing
Ordering Information
| Opal5G-X-Ports-PS | |
|---|---|
| X | Operating temperature range |
| E | -10 to +60°C operating temperature |
| None | -40 to +75°C operating temperature |
| Ports | |
| 5GE | 5X10/100/1000Base-T(X) RJ45 ports |
| PS | |
| LV-LV | 12-48VDC/18-30VAC, redundant power inputs |
| Accessories | |
|---|---|
| DT-BGAZ-01 | Panel for Panel mounting |
| DT-FCZ-RJ45-01 | Dustproof cover for RJ45 port |
Downloads
| Name | Type | File Size | |
|---|---|---|---|
Opal5G/Opal10G_Hardware-Installation-Manual_V1.3 | Hardware Installation Manual | ||
Kyland_Opal5G_Datasheet | Datasheet |
| Unmanaged/managed | Unmanaged Switches |
|---|---|
| Installation | DIN Rail Ethernet Switches |
| Certificate | CE/FCC, IECEx, ATEX, UL61010 |
| Interface | Gigabit |
| IP Class | IP30 |
| Network Interface | RJ45 Connectors |
| Number of Ports | 0 – 8 |
| Power Supply | 12-48V DC |
| Operation Temperature | -40°C ~ 75°C |
