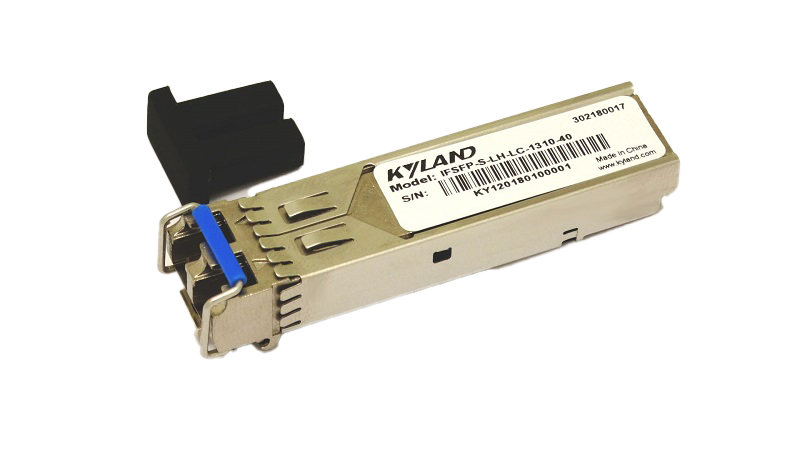

SFP-1FX
Industrial 100M SFP Optical Transceiver Module
Key Features
- Transmission rate 155Mb/s
- Single power supply 3.3V
- Hot-Pluggable capability
- Duplex LC connector
- Compliant with RoHS Standard
- Digital diagnostic monitor compatible with SFF-8472
Specifications
| Standard | SFF-8472 IEEE 802.3 |
| Interface | LC Connector |
| Physical Characteristics | Dimensions：13.7mm×12.7mm×56.6mm (W×H×D) Weight 40g |
| Environmental Limits | Operating Temperature -40℃～85℃ Storage Temperature -40℃～85℃ Ambient Relative Humidity 5～95% (non-condensing) |
| Quality Assurance | Warranty period 2 years |
| Approvals | RoHS |
Ordering Information
| Product Model | Product Description | ||||
|---|---|---|---|---|---|
| Type | Connector | Center Wavelength | Transmission Distance | Coupled Fiber | |
| IFSFP-M-LX-LC-1310-2-DDM | Multi Mode | LC | 1310nm | 2km | 50/125μm MMF 62.5/125μm MMF |
| IFSFP-S-LH-LC-1310-40-DDM | Single Mode | LC | 1310nm | 40km | 10/125μm SMF |
| IFSFP-S-LH-LC-1550-60-DDM | Single Mode | LC | 1550nm | 60KM | 9/125μm SMF |
| IFSFP-S-LH-LC-1550-80-DDM | Single Mode | LC | 1550nm | 80KM | 9/125μm SMF |
100Base-FX SFP (155Mbit/s) Parameter Table
| Property | LX | LH | LH | ZX | |
|---|---|---|---|---|---|
| Type | Multi Mode(M) | Single Mode(S) | Single Mode(S) | Single Mode(S) | |
| Center Wavelength(nm) | 1310 | 1310 | 1550 | 1550 | |
| Transmission Distance(km) | 2 | 40 | 60 | 80 | |
| Application Range of Transmission Distance(km) | 0~2 | 0~40 | 10~60 | 10~80 | |
| Coupled Fiber | 62.5/125μm MMF 50/125μm MMF | 10/125μm SMF | 9/125μm SMF | 9/125μm SMF | |
| Average Optical Output Power | Min.(dBm) | -20 | -12 | -5 | -5 |
| Max.(dBm) | -14 | -4 | 0 | 0 | |
| Receiver Sensitivity (dBm) | -31 | -34 | -34 | -34 | |
| Maximum Input Power (dBm) | -3 | -3 | -3 | -3 | |
Downloads
| Name | Type | File Size | |
|---|---|---|---|
SFP-1FX | Datasheet |
