SICOM3028GPT-A
24G+4*10G port layer 2/3 managed rack mountable modular switches
Product Overview
SICOM3028GPT-A is an intelligent modular platform which is an All-in-One solution integrating IEEE1588v2, full gigabit, and both layer 2 & Layer 3 availability specifically designed to operate reliably in electrically harsh and climatically demanding utility substation and industrial environments. SICOM3028GPT-A supports up to 24 gigabit and 4 10gigabit ports or 28 gigabit ports, meets the IEC61850-3 and IEEE1613 standards. SICOM3028GPT-A is a 19-inch 1U rack mountable device and supports one 1U slot and six 0.5U slots which offers the maximum flexibility for easy expansion.
SICOM3028GPT-A supports IEEE1588 PTPv2 with hardware time stamping andsupports the BC, P2P TC, and E2E TC clock modes, it reaches a timing precision of 100 ns. It supports PTP Power Profile and supports many modules for time synchronous like HSR/PRP. SICOM3028GPT-A supports many Layer 2 software features such as port, VLAN, QinQ, multicast, QoS, DRP/DT-RING/MRP ring protocol, STP/RSTP/MSTP and Layer 3 functions such as VRRP, RIP, OSFP, IGMP and PIM. It supports Console, Telnet, Web management and network management software based on SNMP. At present, the product is widely used at the intelligent substation and many other industrial communication systems.
Key Features
- Flexible modular design for easy expansion, supports max 24 gigabit and 4 10gigabit fiber/copper ports
- Supports DT-Ring, DRP, MRP, RSTP/MSTP and VRRP for network redundancy
- Supports Layer 3 routing protocols such as RIP and OSPF
- Supports IEEE1588v2 and the synchronization precision reaches ±100 ns, with HWbased PTP 1588
- Supports HSR/PRP module
- Supports Hot-Swappable Power Supplies
- Supports IEC61850 MMS
- Supports KyACB
- Support Profinet/Modbus TCP/ EthernetIP protocols
- Complies with the Cyber Security IEC62443-4-2
- Complies with IEC61850-3 and IEEE1613
- KEMA, CE, FCC
Specifications
| Software functions | Switching function | Supports VLAN and PVLAN. Supports GVRP Supports port aggregation and LACP. Supports flow control. Supports broadcast storm suppression. Supports QinQ. Supports MAC address management. |
| Redundancy protocol | Supports DHP and DRP and the recovery time<20 ms. Supports DT-Ring, DT-Ring+, and DT-VLAN and the recovery time<50 ms. Supports STP/RSTP/MSTP. Supports MRP. | |
| Multicast protocol | Supports IGMP v1/v2/v3. Supports GMRP. Supports static multicast. | |
| L3 function (part of sub-models support) | Support IPv6. Supports static routing. Supports RIP v1/v2. Supports OSFP v2. Supports VRRP. Supports PIM SM, PIM DM. | |
| Security | Supports IEEE 802.1x. Supports HTTPS/SSL. Supports SSH. Supports SFTP client. Supports RADIUS. Supports TACACS+. Supports user grading. Supports MAC address binding. Supports port isolate. Supports security IP for Web/Telnet/SSH/SNMP service. Supports IEC62443-4-2. | |
| Service quality management | Supports ACL. Supports 802.1p(CoS), DSCP. Supports priority mapping. Supports SP and WRR queuing. | |
| Management and maintenance | Supports Console, Telnet, and Web（HTTP or HTTPs） management methods. Supports SNMPv1/v2c/v3 and can managed by Kyvision. Supports IEC61850 MMS management. Supports TFTP server/client. Supports FTP server/client. Supports file transfer and software update over FTP and TFTP. Supports the IP/MAC address conflict alarm, power failure alarm, power alarm, temperature alarm, port linkdown alarm, port traffic alarm, CRC and packet lose alarm, CPU alarm, memory alarm, Sfp port rx power alarm, transceiver alarm and ring alarm. Supports Profinet, ModbusTCP, Ethernet/IP. Supports port mirroring. Supports DDM. Supports loop detection Supports CRC protection Supports Syslog. Supports RMON Supports LLDP. Supports Link-check. | |
| IP address management | Supports Bootp. Supports DHCP server/client. Supports Up to 16 different IP addresses and VLAN for system management. | |
| Time synchronization | Supports PTPv2 (IEEE1588-2008). Supports Power profile (C37.238). Supports NTP and SNTP. | |
| Product Specifications | Standard | IEEE 802.3i (10Base-T) IEEE 802.3u (100Base-T) IEEE 802.3ab (1000Base-T) IEEE 802.3ad (port aggregation) IEEE 802.3z (1000Base-SX/LX) IEEE 802.3x (flow control) IEEE 802.1p (priority) IEEE 802.1Q (VLAN) IEEE 802.1w (RSTP) IEEE 802.1s (MSTP) IEEE1588-2008 (PTPv2) |
| Switch properties | Priority queue: 8 Number of VLANs: 4K VLAN ID: 1–4093 Number of multicast groups: 1024 Routing table: 8K (L2 chassis do not involve) MAC table: 32K Packet buffer: 48Mbit Switching delay: < 10 μs Jumbo Frame Size: 10 KB | |
| Interface | Gigabit ports: 1000Base-X, SFP port, supports DDM 10/100/1000Base-T(X), RJ45 port Fast Ethernet ports: 100Base-FX, single/multi mode, SC/ST connector 100Base-FX, SFP port(LC connector), supports DDM 10/100Base-T(X), RJ45 port Console port: RJ45 Alarm contact: 3-pin 5.08mm-spacing plug-in terminal block, 250 VAC/220 VDC Max, 2 A Max, 10A@1s, 60 W Max | |
| LED | LED on front panel Alarm LED: Alarm Running LED: Run Ring Role LED: Ring KyACB LED: USB Synchronization finish LED: Lock Power LED: PWR1, PWR2 Port speed LED: Speed Port LED: Link/ACT LED on rear panel Port LED: Link/ACT Port speed LED: Speed | |
| Power Requirements | Power input: 24-48VDC (18-72 VDC) 100-240VAC,50/60Hz;110-220VDC (85-264VAC/77-300VDC) Power terminal: 5-pin 5.08 mm-spacing plug-in terminal block Power consumption: < 40 W Overload protection: Support Reverse connection protection: Support Redundancy protection: Support Hot Swappable: Support | |
| Physical Characteristics | Housing: Metal Cooling: Natural cooling, fanless Protection Class: IP40 Dimensions(W×H×D)： 482.6 mm × 44 mm × 359.7 mm Weight: < 10 Kg Mounting: 19 inch 1U rack mounting | |
| Environmental limits | Operating temperature: -40°C to +85°C Storage temperature: -40°C to +85°C Ambient Relative Humidity: 5% to 95% (non-condensing) | |
| Quality assurance | MTBF: 359000h (SICOM3028GPT-L2GT) 368000h (SICOM3028GPT-L3GT) Warranty: 5 years | |
| Approvals | KEMA,CE IEC 62368-1, EN 62368-1 IEC 62439-3 | |
| Industry standard | EMI FCC CFR47 Part 15, EN55022/CISPR22, Class A EMS IEC61000-4-2(ESD) ±8 kV (contact), ±15 kV(air) IEC61000-4-3(RS) 10 V/m (80 MHz-2 GHz) IEC61000-4-4(EFT) Power Port: ±4 kV; Data Port: ±2 kV IEC61000-4-5(Surge) Power Port: ±2 kV/DM, ±4 kV/CM; Data Port: ±2 kV IEC61000-4-6(CS) 3 V (10 kHz-150 kHz); 10 V (150 kHz-80 MHz) IEC61000-4-8 (power frequency magnetic field) 100 A/m(cont.), 1000 A/m(1s-3s) IEC61000-4-9 (pulsed magnetic field) 1000 A/m IEC61000-4-10 (damped oscillation) 100 A/m IEC61000-4-12 (oscillatory wave) 2.5 kV/CM, 1 kV/DM IEC61000-4-16 (common mode conduction) 30 V(cont.), 300 V(1s) Machinery IEC60068-2-6 (vibration) IEC60068-2-27 (shock) IEC60068-2-32 (free fall) Climatic environmental IEC60068-2-1 Cold test IEC60068-2-2 Dry heat test IEC60068-2-14 Change of temperature test IEC60068-2-30 Damp heat cyclic test IEC60068-2-78 Damp heat steady state test |

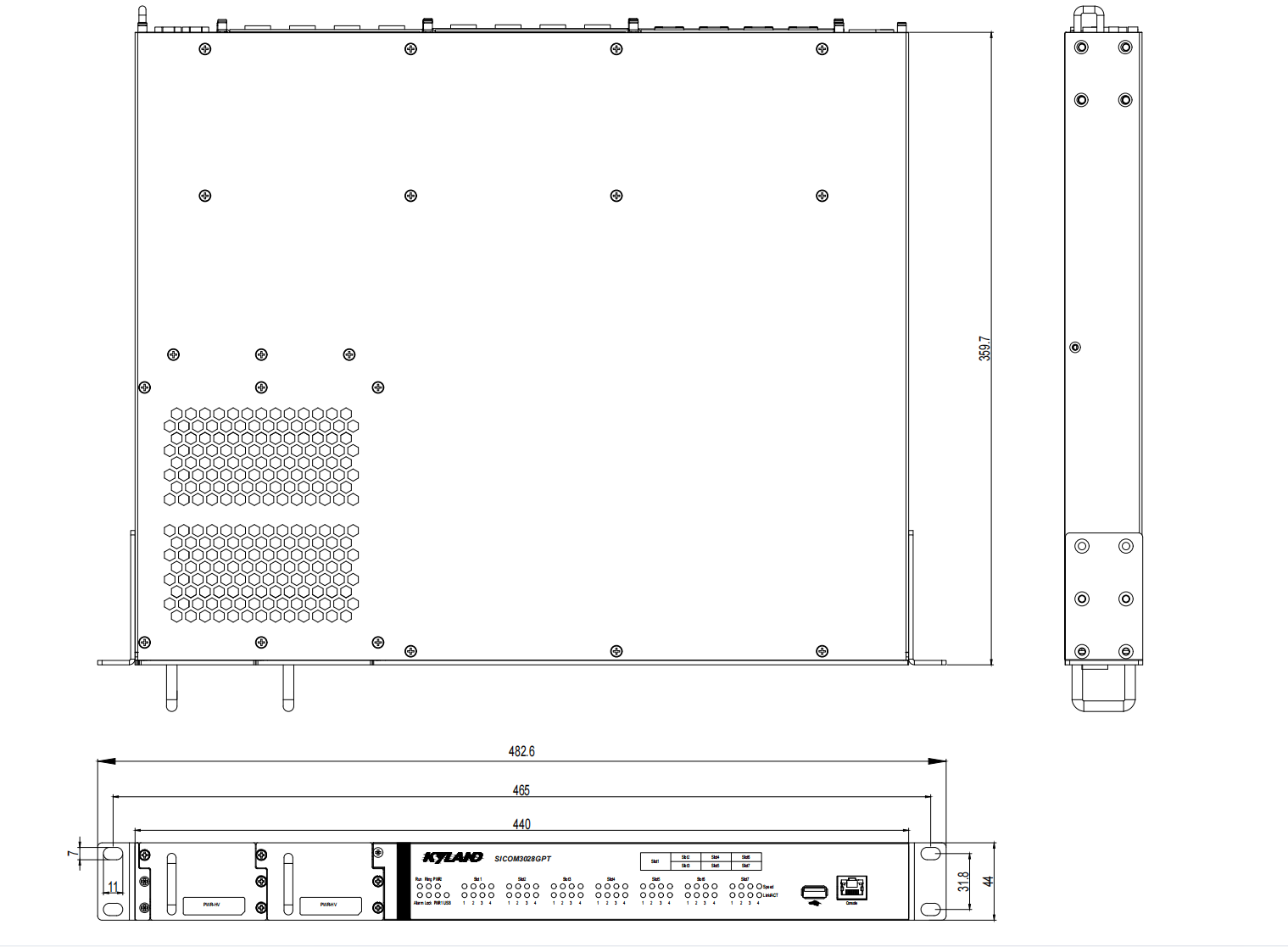

Mechanical Drawing
Hot-Swappable:
Ordering Information
Product Selection Table
| Sub-mode | Ethernet Ports |
|---|---|
| SICOM3028GPT-A-L2GT | Up to 28gigabit or 24gigabit + 4*10gigabit ports, L2 chassis |
| SICOM3028GPT-A-L3GT | Up to 28gigabit or 24gigabit + 4*10gigabit ports, L3 chassis |
Ordering Information
Recommended model
| Product Model | SICOM3028GPT-A-SM |
|---|---|
| SM: Sub-model | L2GT-MB: SICOM3028GPT 28G or 24G + 4*10G ports L2 chassis with timesynchronization L3GT-MB: SICOM3028GPT 28G or 24G + 4*10G ports L3 chassis with timesynchronization |
| Hot-Swappable Power Module | SM6.6-A-Power-PS |
| PS: power supply | HV=100-240VAC,50/60Hz; 110-220VDC(85-264VAC/77-300VDC), 1U L2 =24-48VDC(18-72VDC), 1U |
| Slot 1: | SM6.6-A-Ports-1U |
| Ports: | 4X = 4 x 10G Base-X, SFP+ ports, 1U 4GX = 4 x 1000Base-X, SFP ports, 1U 4GE = 4 x 10/100/1000Base-T(X) RJ45 ports, 1U |
| Slot2-Slot7: | SM6.6-A-Ports-Connector-0.5U |
| Ports: | 4GX = 4 x 1000Base-X, 100Base-FX, SFPports, 0.5U 4SFP = 4 x 100Base-FX SFP ports, 0.5U 4GE = 4 x 10/100/1000Base-T(X) RJ45 ports, 0.5U 4S = 4 x 100Base-FX, single-mode fiber ports, 0.5U 4M = 4 x 100Base-FX, multi-mode fiber ports, 0.5U 4T = 4 x 10/100Base-T(X) RJ45 ports, 0.5U |
| Connector: 100M fiber port | SC05 = SC connector, multi-mode, 1310nm, 5km ST05 = ST connector, multi-mode, 1310nm, 5km SC40 = SC connector, single-mode, 1310nm, 40km ST40 = ST connector, single-mode, 1310nm, 40km |
| Slot2-Slot7: | Function Module |
| SM6.6-A-HSR/PRP-GE-0.5U = Redbox module, 2 x 10/100/1000Base-T(X) RJ45 port SM6.6-A-HSR/PRP-GX-0.5U = Redbox module, 2 x 1000Base-X,100Base-FX SFP port |
Downloads
| Name | Type | File Size | |
|---|---|---|---|
Kyland_SICOM3028GPT-A_Datasheet |
| Unmanaged/managed | Layer 3 Managed Switches |
|---|---|
| Installation | Rackmount Ethernet Switches |
| IP Class | IP40 |
| Operation Temperature | -40°C ~ 85°C |
| Interface | Gigabit |
| Network Interface | Fiber Connectors, RJ45 Connectors |
| Number of Ports | 17 – 28 |
| Power Supply | 24V DC, 48V DC, 220V AC |
| Certificate | CE/FCC, EN50121, EN50155, KEMA, NEMA-TS, UL61010 |
| Features | IEEE1588V2 |
| Redundancy | HSR/PRP |
