Product Overview

Aquam5S/8S/9S as unmanaged Ethernet Switch, supports 5/8 Fast Ethernet or 1 Gigabit and 8 Fast Ethernet interfaces of with M12 connector to ensure the tightness and the firmness of the connection and ensure reliable operation, especially suitable for application that are subject to high vibration and shock. Aquam5S/8S/9S supports panel mounting, supports IP65 protection class to meet the requirements of dustproof and waterproof performance, supports a wide range of operation temperature(-40℃~70℃), and meets EN50155, EN50121, EN55022 Class A&B and FCC CFR47 Part 15 standard requirements, making the product is suitable for the industrial field of various harsh environment, especially rail transportation industry with  strict requirements on reliability.

The Aquam5S/8S/9S supports PoE function, provide 5 or 8 fast Ethernet M12 ports with  IEEE 802.3at compliant PoE+ (compatible with IEEE802.3af) , and can be used to power up to 8 IEEE 802.3at compliant powered devices (PDs), eliminating the need for additional wiring. The switches are classified as power source equipment (PSE) and provide standard IEEE802.3at and IEEE802.3af ,with PoE power up to 30 watts per port.

Key Features
  • Supports a maximum of 5 or 8 10/100Base-TX ports or 1 Gigabit +8 10/100 Base-TX prots
  • Supports M12 connectors with D code for Fast Ethernet ports and X code for Gigabit ports
  • Supports POE with IEEE802.3af and IEEE802.3at standards, as well as a maximum of 5 or 8 POE ports
  • Supports panel mounting
  • Supports redundant power input
  • Complies with the requirements of EN50155 and EN50121 industrial standards
  • IP65 protection class
Technical ParameterStandard
IEEE 802.3i(10Base-T)
IEEE 802.3u(100Base-TX)
IEEE 802.3af(PoE)
IEEE 802.3at(PoE+)
IEEE 802.3ab(1000Base-T)(Aquam9S Only)
Switch PropertiesMAC Table 16K
Packet Buffer 4Mbit
Packet Forwarding Rate
- Aquam9S: 2.7Mpps
- Aquam8S: 1.2Mpps
- Aquam5S: 0.7Mpps
Switching Delay <10us
InterfaceFast Ethernet Port 10/100Base-T(X),M12 D-coded connector
Gigabit Ethernet Port 10/100/1000Base-T(X), M12 X coded connector
LEDLEDs on Front Panel
Power LED: PWR1,PWR2
Interface LED: Link/ACT
Power RequirementsPower Input 24-110VDC(16.8-154VDC)
Power Terminal M23
Power Consumption 11.8W@SW(without PD)
140W@MAX(with 80W PD)
Overload Protection Support
Reverse Connection Protection Support
Physical CharacteristicsHousing Metal
Cooling Nature cooling,fanless
Protection Class IP65
Dimensions 238mm×100mm×89.6mm(W×H×D)
Weight <1.9Kg
Mounting panel mounting
Environmental LimitsOperating Temperature -40 to +70°C
Storage Temperature -40 to +85°C
Ambient Relative Humidity 5 to 95% (non-condensing)
WarrantyMTBF 2092908h
Warranty Period 5 years
ApprovalsCE, FCC, EN50121, EN50155, EN45545, EN60950, E mark
Industrial Standard

FCC CFR47 Part 15,EN55022/CISPR22,Class A

IEC61000-4-2 (ESD) ±6kV (contact), ±8kV (air)
IEC61000-4-3 (RS) 20V/m (80MHz-2GHz)
IEC61000-4-4 (EFT) Power Port: ±2kV; Data Port: ±2kV
IEC61000-4-5 (Surge) Power Port: ±1kV/DM, ±2kV/CM
IEC61000-4-6 (CS) 10V (150kHz-80MHz)
IEC61000-4-8(Power frequency magnetic field)50Hz 100A/m
IEC61000-4-9(Pulsed magnetic field )300A/m
IEC61000-4-29 (Voltage Short interruptions) 10ms 100%


IEC61373 (Vibration and Shock)
IEC60068-2-32 (Free Fall)

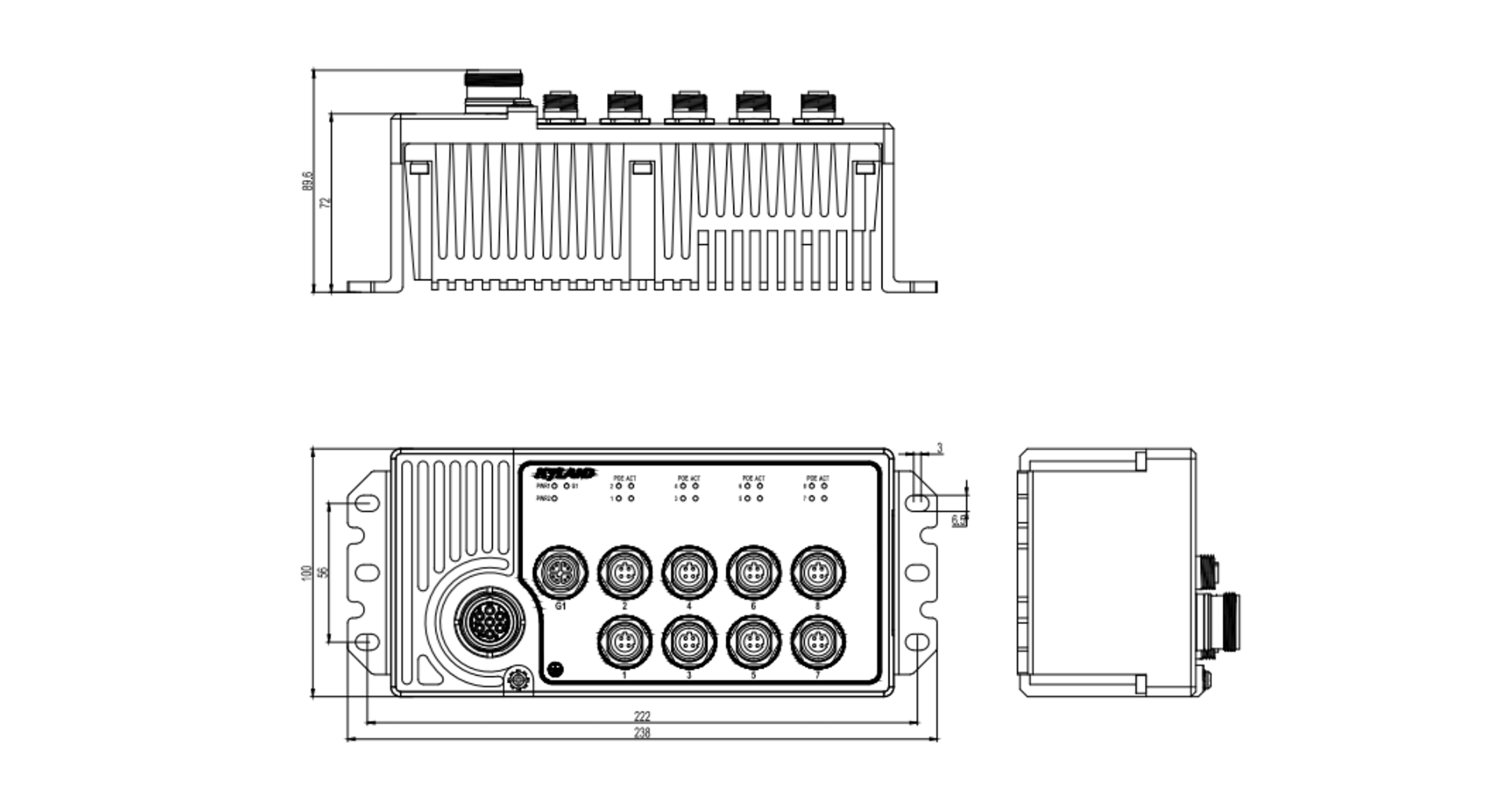

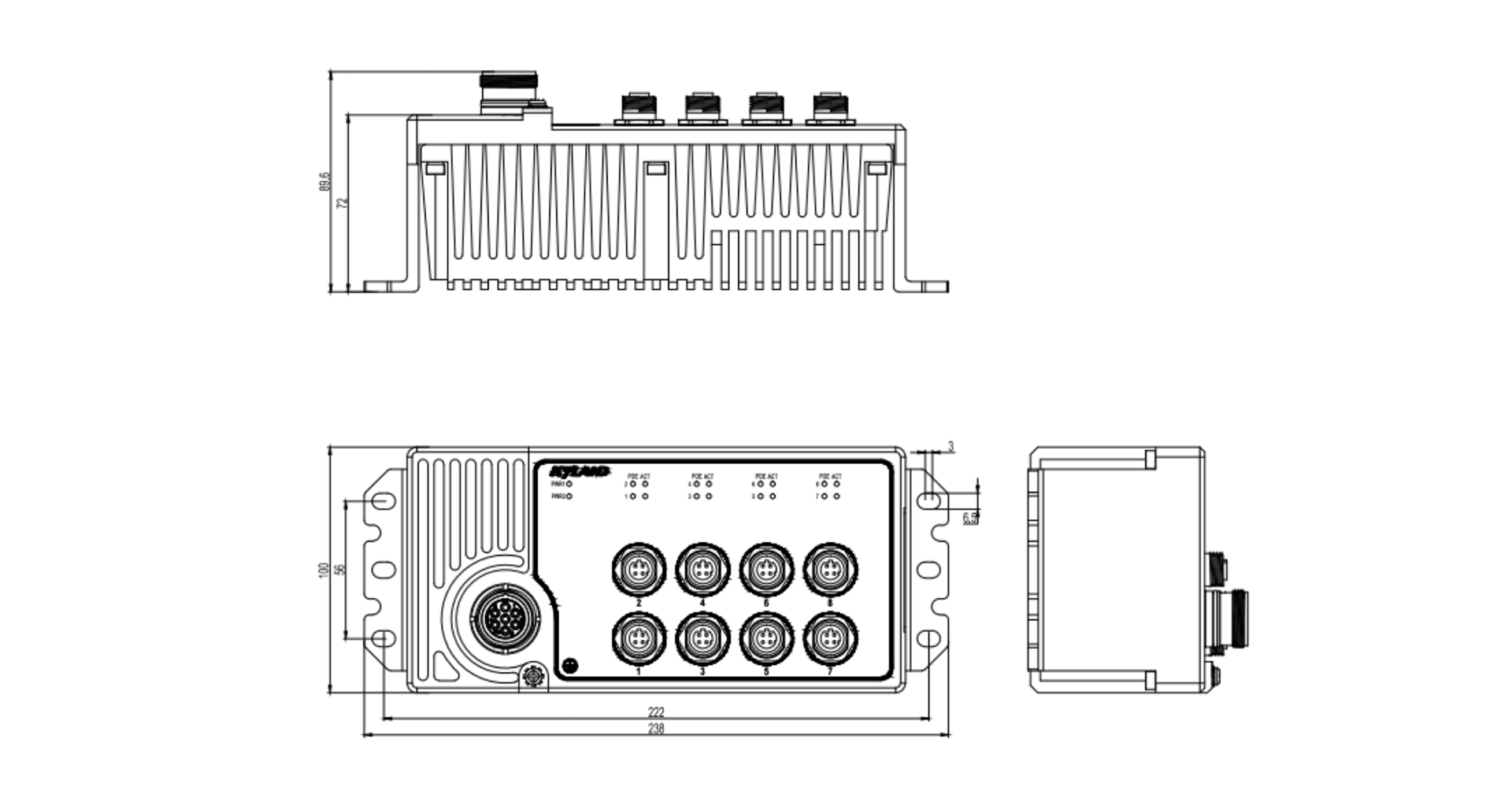

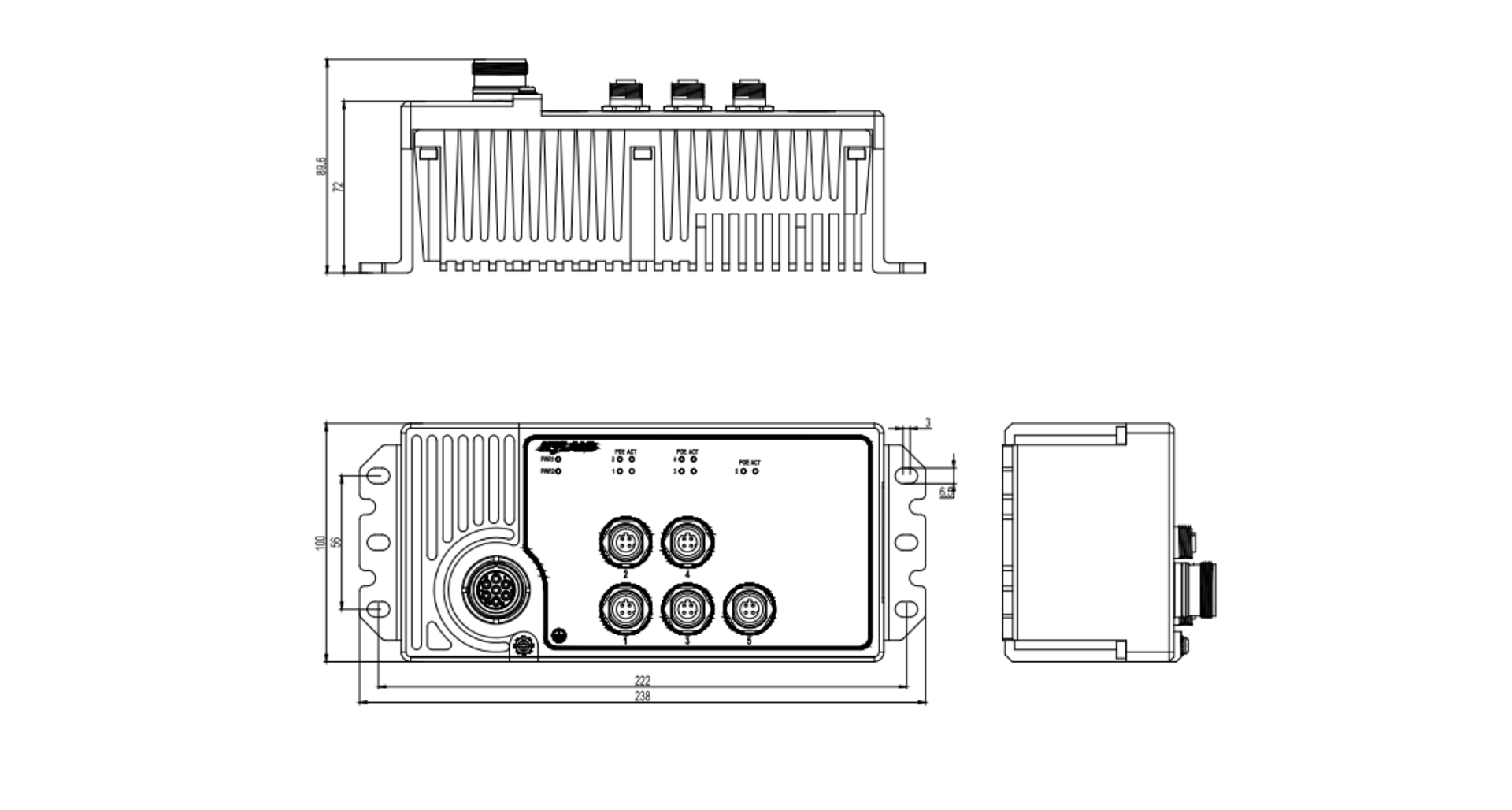

Mechanical Drawing




Ordering Information
Ordering Information
Product ModelAquam5S-Ports-PS1-PS2
Code DefinitionOrdering Codes
Ports5P = 5 X 10/100BASE-T(X) M12 PoE ports
Product ModelAquam8S-Ports-PS1-PS2
Ports8P = 8 X 10/100BASE-T(X) M12 PoE ports
Product ModelAquam9S-Ports-PS1-PS2
Ports1GE8P = 1X 10/100/1000Bsase-T(X) M12 ports, 8 X 10/100BASE-T(X) M12 PoE ports
PS1-PS2 (Power Supply)WV-WV=24-110VDC(16.8-154VDC), redundant power inputs
Accessory ModelDescriptionNote
M23-5P-F-CrimpFemale cable connector with M23, 5 Pin,CrimpPower interface Connector
M12-D-4P-MMale cable connector with M12, D-Coding, 4 Pin10/100Base-TX interface Connector
M12-X-8P-MMale cable connector with M12, X-Coding, 8 Pin10/100/1000Base-TX interface Connector
NameTypeFile Size
Hardware Installation Manual

Unmanaged Switches


Wall-mount Ethernet Switches


CE/FCC, E mark, EN45545, EN50121, EN50155


Full 100M

IP Class


Network Interface

M12 Connectors

Number of Ports

0 – 8, 9 – 16

Power Supply

24-110V DC

Operation Temperature

-40°C ~ 70°C
