KPS3224A
1U Rack Mount Serial Server
Product Overview
Kyland KPS3224A Serial Server is an 1U rack-mount industrial serial server. It is mainly used to connect serial port equipment to Ethernet, the serial port data can be read through the network and the serial port device can be remotely controlled. Kyland KPS Serial Server not only supports TCP client, TCP server and UDP network communication modes, but also supports transparent transmission and Modbus RTU data transmission protocol.
Kyland KPS3224A Serial Server support 8 RS232 serial port and 16 RS485 or 8 RS422 serial port. The product provides 120 Ω switchable terminal resistance to reduce signal reflection and effectively improve the stability and reliability of RS485/RS422 serial port communication.
Key Features
- Provide 2 Ethernet interfaces, 8 RS232, 16 RS485 or 8 RS422 serial ports
- Support dual power redundant power supply
- Support dual network port bridging cascading, dual network port independent can be configured with different network segment IP
- Support socket operation mode, including TCP server, TCP client and UDP
- Support IEC61850 server/client application
- Support Web and specialized debugging and management tool KyPMT
- Support alarm function and reset function
- 2kv isolation protection for the serial port 1.5kv isolation protection for Ethernet ports
- IP40 protection class and EMC3
- Metal housing, wide temperature operation(-40°C~+75°C)
Specifications
| Technical Specifications | Ethernet Interface | Ethernet port number: 2 Speed: 10/100 Mbps, Auto MDI/MDIX Connector: RJ45 |
|---|---|---|
| Serial Interface | Serial port number: 8×RS232, 16×RS485 or 8×RS422(Configure by software) Connector: 2-pin terminal block Isolation Protection: 2kv(build-in) DIP switch: enable/disable the 120 Ω terminal resistor of RS485 | |
| Serial Communication Parameters | Operation mode: TCP Client, TCP Server, UDP Baud rate: 4800bps～115200bps Data bit: 5、6、7、8 Stop bit: 1、2 Check digits: None、Even、Odd | |
| Switch | Support dual network port bridging cascading, dual network port independent can be configured with different network segment IP. | |
| Route | Support static routing | |
| Security function | SSH, SSL MAC address binding User classification | |
| Equipment management | Web management(HTTP/HTTPS) KyCMT(device search, IP address configuration and other functions) ICMP SNMP v2c SNMP trap ARP DNS DHCP Client | |
| Equipment maintenance function | Upgrading through web FTP, TFTP and syslog SMTP mail alert Equipment alarm indicator Automatic reconnection after disconnection | |
| Clock characteristics | NTP client | |
| LED indicators | System: Power, Run Alarm LED: ALARM Reset LED: Reset Tx/Rx LED: Serial port transmit /Receive data Port LED: Link/Act | |

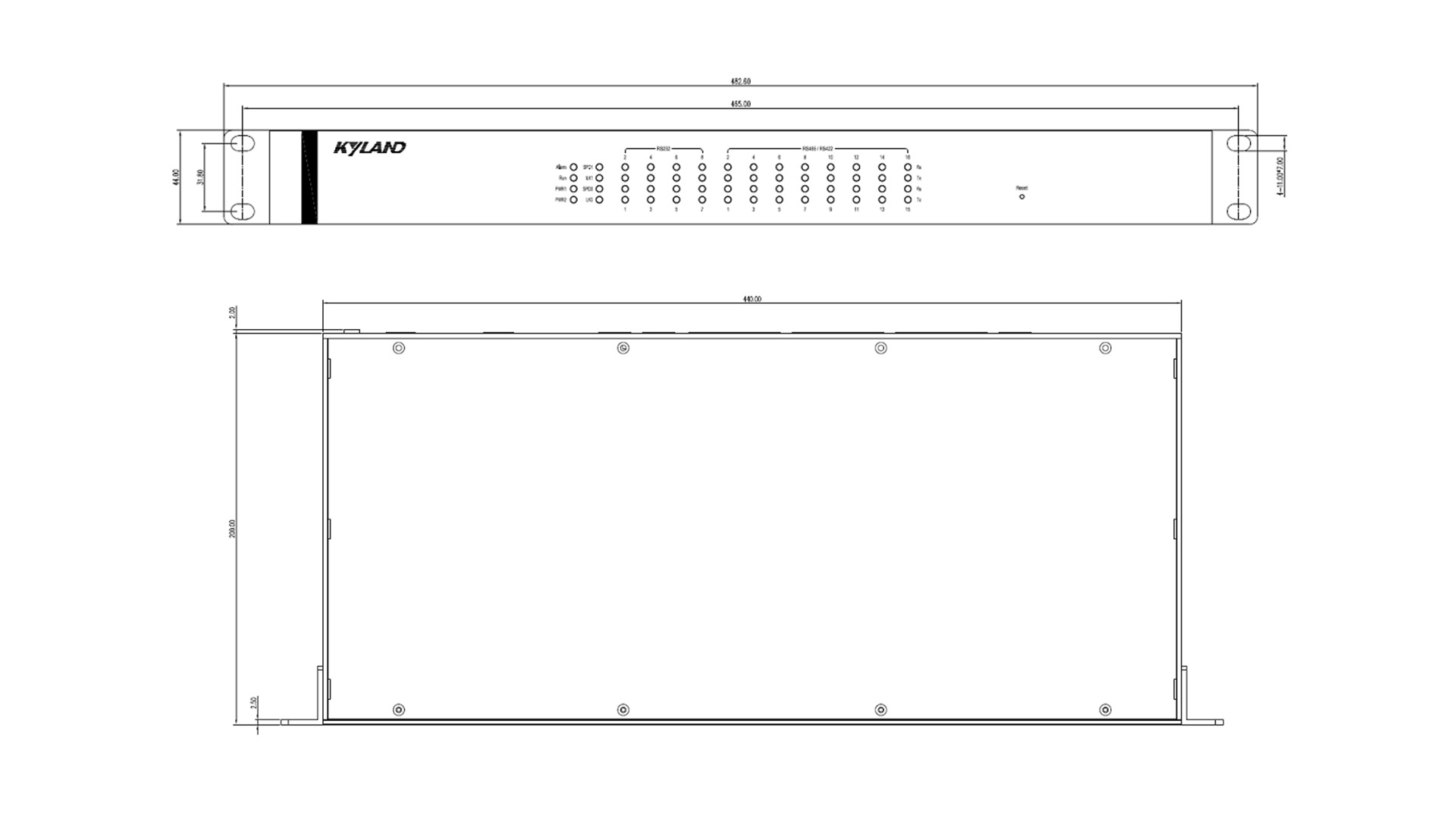

| Physical Characteristic | Enclosure: SECC electrolytic galvanized steel sheet Dimension(mm): 483×200×44 Protection Class: IP40 Cooling: Natural cooling, fanless Installation method: DIN rail type and wall-mounted type | |
| Environmental feature | Operating temperature: -40℃～75℃ Storage temperature: -40℃～85℃ Ambient Relative humidity: 5～95%, no condensation Heat dissipation mode: natural cooling MTBF: >30000h Warranty: 5 Years | |
| Power requirements | Input voltage: 220VAC dual power optional Power Consumption: <8W Access terminal: 5-pin 5.08 mm-spacing plug-in terminal block Reverse protection: Support Overload protection: Support Power failure alarm: Support | |
| Industrial standards | EMI FCC CFR47 Part 15, EN55022/CISPR22,ClassA EMS IEC61000-4-2(ESD) ±6kV(contact),±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz～2GHz) IEC61000-4-4(EFT) Power Port:±2kV;Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM,±2kV/CM; Data Port:±1kV IEC61000-4-6(CS) 10V(150kHz～80MHz) IEC61000-4-8 100A/m(cont.),1000A/m(1s-3s) IEC61000-4-9 1000A/m IEC61000-4-10 100A/m IEC61000-4-12 2kV/CM,1kV/DM IEC61000-4-16 30V(cont.),300V(1s) Machinery IEC60068-2-6(vibration) IEC60068-2-27(shock) IEC60068-2-32(free fall) |
Ordering Information
| Models | Ethernet Ports | RS232 | RS485/ RS422 | Power | Dimension (mm) |
|---|---|---|---|---|---|
| KPS3224A-2T24D-232/485/422-HV | 2 | 8 | 16/8 | 85~265VAC | 483×200×44 |
| KPS3224A-2T24D-232/485/422-HV-HV | 2 | 8 | 16/8 | 85~265VAC (Dual) | 483×200×44 |
Downloads
| Name | Type | File Size | |
|---|---|---|---|
KPS/KGW-Serials_User-Manual_V1.7 | User Manual | ||
Kyland_KPS3224A_Datasheet | Datasheet |
| IP Class | IP40 |
|---|---|
| Operation Temperature | -40°C ~ 75°C |
| Number of Ports | 0 – 8 |
| Interface | Full 100M |
| Network Interface | RJ45 Connectors |
| Power Supply | 110-220V AC |
| Features | Modbus TCP/RTU |
| Installation | Rackmount Ethernet Switches |
