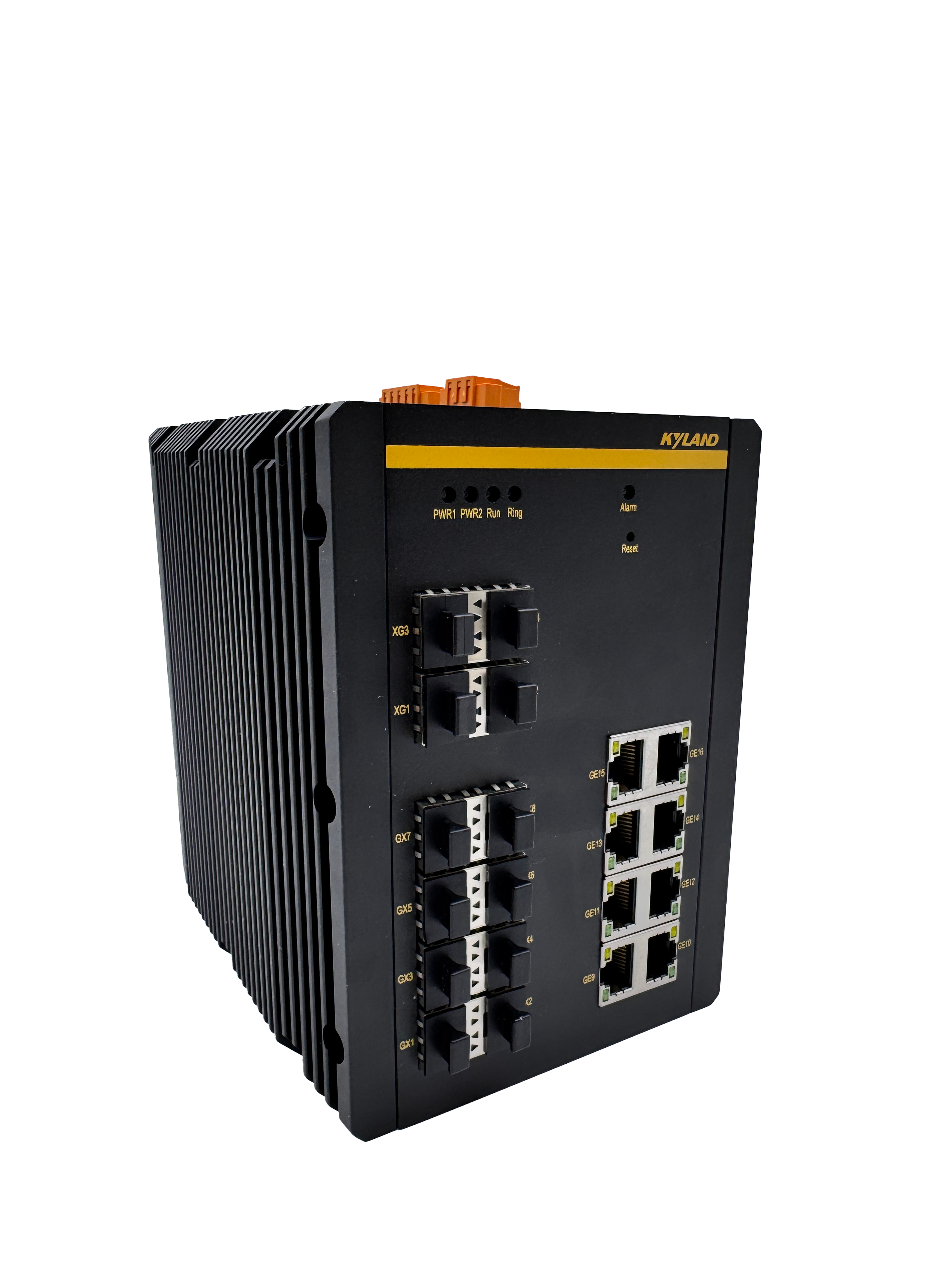

Product Overview

SICOM3000TSN is TSN ready Layer 2 Managed Industrial Ethernet Switch, supports 2×10GBase-X SFP+, 4×100/1000Base-X SFP, 8×10/100/1000Base-T(X) RJ45, Auto-detection, Full/Half Duplex, MDI/MDI-X. SICOM3000TSN supports standard TSN protocols: IEEE 802.1AS PTP/IEEE 802.1Qbv/IEEE 802.1Qcc/ 802.1Qav. SICOM3000TSN supports IEEE1588 PTPV2, DRP (recovery time<20ms), RSTP/MSTP, VLAN, Multicast, QoS, SSH and many other Layer 2 software features, and supports CLI, Telnet, Web management methods, Network management software centralized management based on SNMPv1/v2c/v3. SICOM3000TSN is especially designed for harsh environments with wide operating temperature range, EMC level 4, IP40 protection class, strong vibration-resistent mounting clip for DIN-Rail installation, and can be deployed in Industrial automation, Power, Automotive electronics, Transportation and many other industrial applications.

Key Features
  • Supports 2×10GBase-X SFP+, 4×100/1000Base-X SFP, 8×10/100/1000Base-T(X) RJ45, Auto-detection, Full/Half Duplex, MDI/MDI-X
  • Supports standard TSN protocols: IEEE 802.1AS PTP/IEEE 802.1Qbv/IEEE 802.1Qcc/ 802.1Qav
  • Supports RSTP/MSTP, DRP
  • Supports CNC centralized network configuration
  • Supports IP40
  • Operation Temperature: -40°C～85°C
  • Supports EMC Level 4 and IEC61850-3
Specifications
Software FunctionsTSN Time Sensitive Network StandardsSupports IEEE 802.1AS PTP
Supports IEEE 802.1Qbv
Supports IEEE 802.1Qcc
Supports IEEE 802.1Qav
SwitchingSupports VLAN, PVLAN
Supports Flow Control
Supports Port Rate Limit, Broadcast, Multicast, Unknown Unicast Storm protection
Supports static and dynamic MAC address aging
RedundancySupports RSTP/MSTP
Supports DRP, network recovery time <20ms
Supports LACP (IEEE802.3ad)
MulticastSupports IGMP snooping
Supports GMRP
Supports Static Multicast
SecuritySupports IEEE 802.1x
Supports HTTPs/SSL
Supports SSH
Supports local RADIUS server, remote RADIS Server forwarding
Supports TACACS+
Supports unicast MAC filter
QoSSupports ACL
Supports Port based or protocol based QoS
Supports 802.1p TOS/DiffServ, Supports SP, WRR
Maintenance & ManagementSupports Console, Telnet, WEB
Supports SNMPv1/v2c/v3
SNMPv3 Supports DES & AES
Supports TCP/UDP, Ping, Trace route
Supports firmware upgrade and configuration backup via FTP/TFTP/SFTP/HTTP/HTTPs
Supports port mirroring and remote port mirroring
Supports LLDP and LLDP MIB (802.1ab)
Supports configurable MTU
DiagnosisSupports hardware self-diagnosis
Supports IP/MAC conflict alarm, power alarm, port alarm and Ring alarm
Supports Syslog
IP ManagementSupports IPv4
Supports DHCP server/option12
Supports Port Security over DHCP
Supports DHCP-relay-agent/option 82/61/66/67
Supports BOOTP/Bootstrap
Supports DHCP Relay Agent Information Option, Supports DHCP Client
Supports ARP
Time ManagementSupports hardware based IEEE1588 PTP
Supports SNTP client
Supports NTP client
Technical SpecificationsStandardIEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-T and 100Base-FX)
IEEE 802.3ab (1000Base-T)
IEEE 802.3z (1000Base-SX/LX)
IEEE1588 (PTP V2)
IEEE 802.1AS
IEEE 802.1Qbv
IEEE 802.1Qcc
IEEE 802.1Qav
SwitchingPriority Queue: 8
Number of VLANs: 4K
VLAN ID 1~4094
Number of Multicast Groups 8K
MAC Table 16K
Packet Buffer 1Mbit
Packet Forwarding Rate 47.6Mpps
Switching Delay <5μs
Jumbo Frame 9.6Kbytes
Interface2×10GBase-X SFP+;4×100/1000Base-X SFP; 8×10/100/1000Base-T(X) RJ45
Console: RS232 RJ45
Alarm contact: 3-pin 5.08mm terminal block,250VAC/220VDC Max, 2A Max
LEDRunning LED: Run
Alarm LED: Alarm
Power LED: PWR1,PWR2
Ring LED: Ring
Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT(Fiber port)
ButtonReset: Reboot and restore default configuration
PowerPower input voltage:
L2 = 24-48VDC(18-72VDC)
HV = 100-240VAC,50/60Hz;110-220VDC(85-264VAC/77-300VDC)
Power Terminal
5-pin 5.08 mm-spacing plug-in terminal block (L2)
3-pin 7.62 mm-spacing plug-in terminal block (HV)
Power Consumption <25W
Overload Protection Support
Reverse Protection Support
Redundancy Protection Support
Physical CharacteristicsHousing: Metal
Cooling Natural convection, fanless
Protection Class IP40
Weight: <1.25Kg
Mounting DIN-Rail or Panel Mounting
Environmental LimitOperating Temperature -40℃～+85℃
Storage Temperature -40℃～+85℃
Ambient Relative Humidity 5～95% (non-condensing)
WarrantyMTBF >300000h
Warranty 5 years
Industrial StandardEMI
FCC CFR47 Part 15,EN55022/CISPR22,Class A
EMS
IEC61000-4-2(ESD) ±8kV(contact),±15kV(air)
IEC61000-4-3(RS) 10V/m(80MHz～2GHz)
IEC61000-4-4(EFT) Power Port: ±4kV;Data Port: ±2kV
IEC61000-4-5(Surge) Power Port: ±2kV/DM,±4kV/CM;Data Port: ±2kV
IEC61000-4-6(CS) 10V(150kHz～80MHz)
Mechanical
IEC60068-2-6(vibration)
IEC60068-2-27(shock)
IEC60068-2-32(free fall)
IEC61850-3

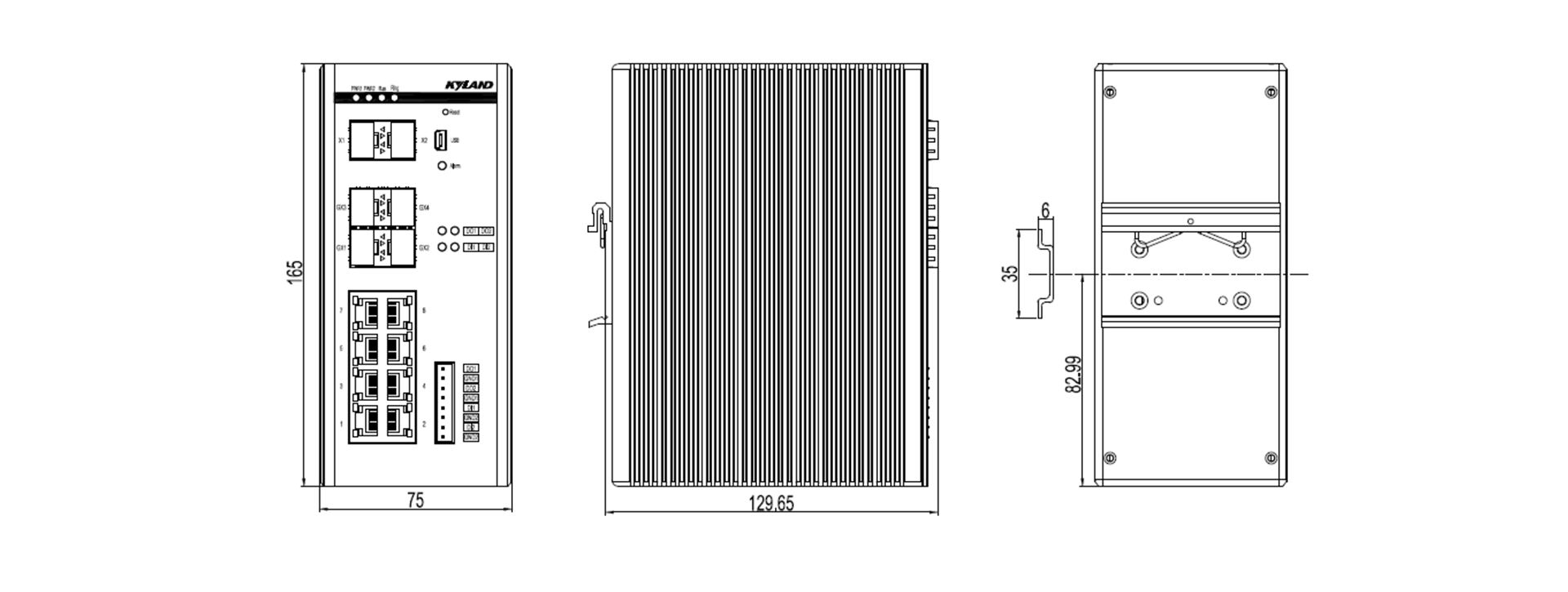

Mechanical Drawing
Ordering Information
ModelSICOM3000TSN-Ports-PS1-PS2
Ports2X4GX8GE=2×10GBase-X SFP+ ports, 4×100/1000Base-X SFP ports, 8×10/100/1000Base-T(X) RJ45 ports
PS1-PS2L2-L2=24-48VDC (18-72VDC), redundant power inputs
HV=100-240VAC,50/60Hz;110-220VDC(85-264VAC/77-300VDC), single power input
