TMS-Trigger Module
TMS-trigger module
Product Overview
TMS-trigger module is specifically designed for SICOM3028GPT series which support PTP protocol. This module works as a part of TMS(Time Management System), provide accurate trigger and response, it realizes the real-time monitoring to the synchronization condition of various devices in the network.
Key Features
- Supports Max four 10 gigabit ports, complies with 2.5 gigabit ports, twelve gigabit ports
- Supports DT-Ring, DRP/DHP, STP/RSTP/MSTP and VRRP for network redundancy
- Supports Layer 3 Static routing and routing protocols such as RIP v1/v2 and OSPF
- Supports SFP Digital Diagnostics Monitoring
- Supports NAT
- Supports PTPv2
- CE, FCC
Specifications
| Standard | IEEE1588-2008(PTPv2) IEC61850-8-1(GOOSE and MMS) |
| Interface | IRIG-B port: IRIG-B DC input/output, TTL, 4-pin 3.81mm-spacing plug-in terminal block Electrical signal input: Pulse, VDC110/220, 2-pin 3.81mm-spacing plug-in terminal block Electrical signal output: Pulse, 2-pin 3.81mm-spacing plug-in terminal block Optical signal input: Pulse, multi-mode SC connector Optical signal output: Pulse, multi-mode SC connector Console port: RS232,RJ45 |
| LED | Running LED: Run Power LED: PWR Electrical signal output LED: DO1 Electrical signal input LED: DI1 Optical signal output LED: DO2 Optical signal input LED: DI2 |
| Power Requirements | Power input: 3.3VDC Power terminal: A type interface (powered by backplane) Power consumption: <1.5W |
| Physical Characteristics | Housing: Metal Cooling: Natural cooling, fanless Dimensions(WxHxD): 122mm×41mm×106.6mm(4.80×1.61×4.20 in.) Weight: 0.5Kg (1.102 pound) |
| Environmental Limits | Operating temperature: -20°C to +85°C (-4°F to 185°F) Storage temperature: -40°C to +85°C (-40°F to 185°F) Ambient Relative Humidity: 5% to 95% (non-condensing) |
| Quality Assurance | Warranty: 5 years |

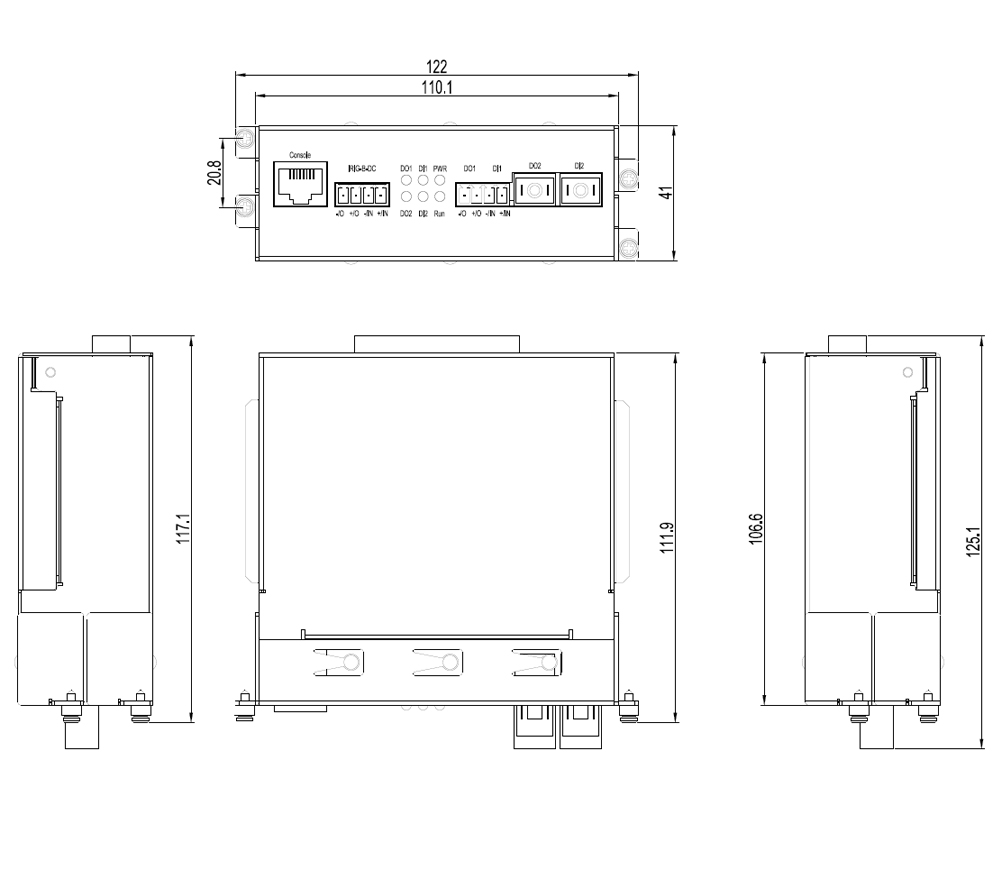

Mechanical Drawing
Ordering Information
SM6.6-TMS-Trigger-1U: TMS-trigger module, 1 IRIG-B output, 1 IRIG-B input, 2 signal input, 2 signal output, 1 Console port
Downloads
| Name | Type | File Size | |
|---|---|---|---|
TMS_Operation-Manual_V1.0 | Operation Manual | ||
Kyland_TMS-Trigger Module_Datasheet | Datasheet |
| Features | IEEE1588 |
|---|
