Opal20
18+2G port entry-level unmanaged DIN-Rail switches.
Product Overview
Opal20 series is a well-designed entry level unmanaged switches with compact structure, flexible port combinations and reliable performance, fulfilling different demands in automation control applications. Opal20 supports 2 optional 10/100/1000Base-TX ports, 2 optional 100Base-FX ports and up to 16 10/100Base-TX RJ45 ports. Opal20 support SC/ST/SFP type fiber ports, redundant power inputs, metal housing with IP30 protection class, thus ensuring fast and reliable data transmission in harsh industrial environments. Opal20 provide both standard (-10°C to 60°C) operating temperature range model and wide (-40°C to 75°C) operating temperature range models to meet different applications.
Key Features
- Flexible port combinations, supporting max 2 10/100/1000 Base-TX ports, 2 100Base-FX ports, 16 10/100Base-TX ports
- Both standard and wide operating temperature models are available
- IP30 protection class
- CE, FCC, UL61010, Class I Div 2, IECEx, ATEX Zone 2, Ex ec IIC T4 Gc
Specifications
| Technical Specification | Standard | IEEE 802.3i (10Base-T) IEEE 802.3u (100Base-TX and 100Base-FX) IEEE 802.3ab(1000Base-T) |
|---|---|---|
| Switch Properties | MAC Table: 8K Packet Buffer: 2Mbit Packet Forwarding Rate: 5.7Mpps Switching Delay:<10μs | |
| Interface | Gigabit Port: 10/100/1000Base-T(X), RJ45 port Fast Ethernet Port: 100Base-FX, SM/MM, SC/ST connector 100Base-X, SFP slot 10/100Base-T(X), RJ45 port | |
| LED | LED on Front Panel: Power LED: PWR1, PWR2 Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT, Speed (Fiber port) | |
| DIP-Switch | Enable/Disable broadcast storm protection | |
| Power Requirements | Power Input: 12-48VDC/18-30VAC Power terminal: 4-pin 5.08mm-spacing plug-in terminal block Power Consumption:<8W Overload protection: Support Reverse protection: Support Redundancy protection: Support | |

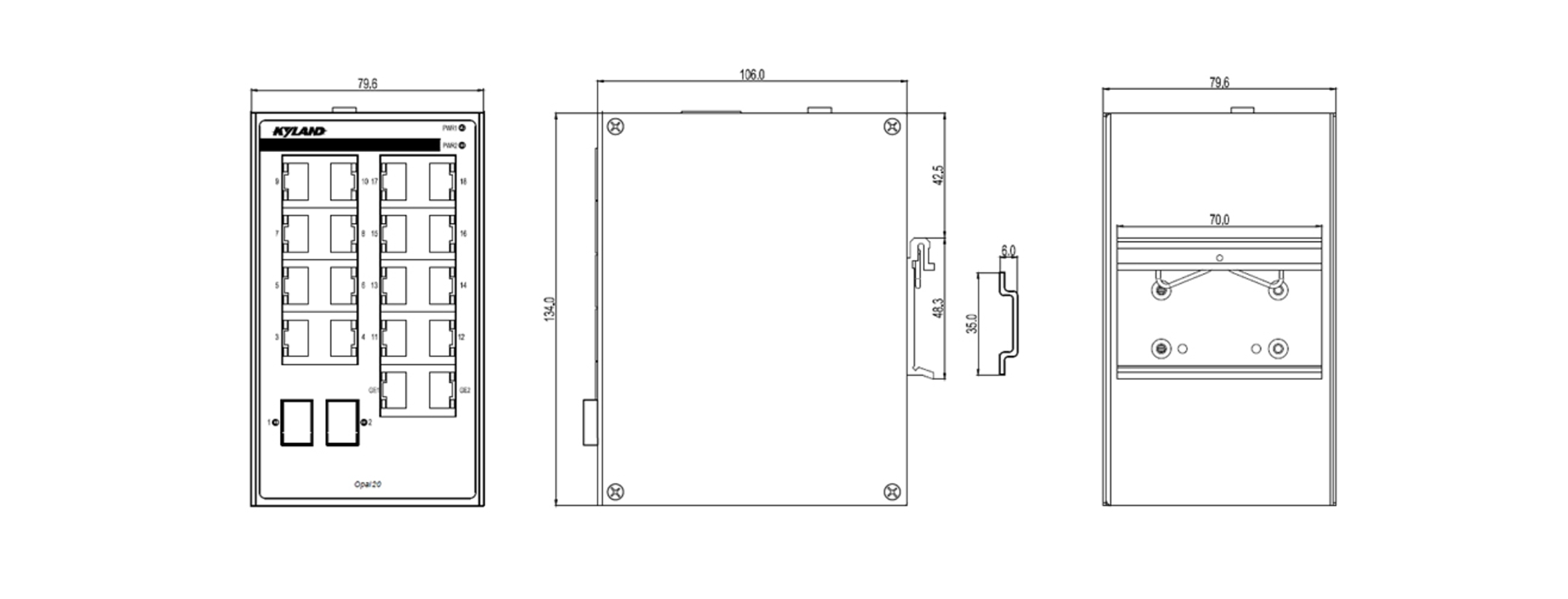

| Physical Characteristics | Housing: Metal Cooling: Natural convection, fanless Protection Class: IP30 Dimension: 80mm×134mm×106mm (W×H×D) Weight: 0.7Kg Mounting: DIN-Rail or Panel mounting | |
| Environmental Limits | Operating Temperature: -10°C to +60°C(Opal20-E) -40°C to +75°C Storage Temperature: -40°C to +85°C Ambient Relative Humidity: 5-95% (non-condensing) | |
| Quality Assurance | MTBF: 2,486,573 hrs Warranty: 5 years | |
| Approvals | CE, FCC, UL61010, Class I Div 2, IECEx, ATEX Zone 2, Ex ec IIC T4 Gc | |
| Industry Standard | EMI: FCC CFR47 Part 15, EN55022/CISPR22, Class A EMS: IEC61000-4-2(ESD): ±6kV (contact), ±8kV (air) IEC61000-4-3(RS): 10V/m (80MHz–2GHz) IEC61000-4-4(EFT): Power Port: ±2kV; Data Port: ±1kV IEC61000-4-5(Surge): Power Port: ±1kV/DM, ±2kV/CM; Data Port: ±2kV IEC61000-4-6(CS): 10V (150kHz–80MHz) Machinery: IEC60068-2-6(Vibration) IEC60068-2-27(Shock) IEC60068-2-32(Free Fall) |
Ordering Information
| Opal20-Ports-Connector-PS1-PS2 / Opal20-E-Ports-Connector-PS1-PS2 | |
|---|---|
| Operating temperature range | |
| E | -10 -+60 operating temperature |
| None | -40 -+75 operating temperature |
| Ports | |
| 2GE2S16T | 2x10/100/1000Base-T(X) RJ45 ports; 2x100Base-FX, single mode fiber ports; 16x10/100Base-T(X) RJ45 ports |
| 2GE2M16T | 2x10/100/1000Base-T(X) RJ45 ports; 2x100Base-FX, multi mode fiber ports; 16x10/100Base-T(X) RJ45 ports |
| 2GE2SFP16T | 2X10/100/1000Base-T(X) RJ45 ports; 2X100Base-X, SFP slots; 16X10/100Base-T(X) RJ45 ports |
| 2GE16T | 2X10/100/1000Base-T(X) RJ45 ports; 16X10/100Base-T(X) RJ45 ports |
| 2S16T | 2x100Base-FX, single mode fiber ports; 16x10/100Base-T(X) RJ45 ports |
| 2M16T | 2x100Base-FX, multi mode fiber ports; 16x10/100Base-T(X) RJ45 ports |
| 2SFP16T | 2X100Base-X, SFP slots; 16X10/100Base-T(X) RJ45 ports |
| 16T | 16X10/100Base-T(X) RJ45 ports |
| Connector | 100M fiber port specifications |
| SC05 | SC connector, multi-mode, 1310nm, 5km |
| ST05 | ST connector, multi-mode, 1310nm, 5km |
| SC40 | SC connector, single-mode, 1310nm, 40km |
| ST40 | ST connector, single-mode, 1310nm, 40km |
| SC60 | SC connector, single-mode, 1310nm, 60km |
| SC80 | SC connector, single-mode, 1550nm, 80km |
| None | No 100M fiber port |
| PS | |
| LV-LV | 12-48VDC/18-30VAC, redundant power inputs |
Downloads
| Name | Type | File Size | |
|---|---|---|---|
Opal10/20_Hardware-Installation-Manual_V1.2 | Hardware Installation Manual | ||
Opal20 | Datasheet |
| Unmanaged/managed | Unmanaged Switches |
|---|---|
| Installation | DIN Rail Ethernet Switches |
| Certificate | CE/FCC, IECEx, ATEX, UL61010 |
| Interface | Full 100M |
| IP Class | IP30 |
| Network Interface | Fiber Connectors, RJ45 Connectors |
| Number of Ports | 17 – 28 |
| Power Supply | 12-48V DC |
| Operation Temperature | -40°C ~ 75°C |
