SICOM6432G
32G/24G+4*10G port layer 3 managed rack mountable switches
Product Overview
SICOM6432G is a layer 3 managed industrial Ethernet switch designed to operate reliably in electrically harsh and climatically demanding industrial environments. SICOM6432G supports up to four 10 gigabit ports, 32 gigabit ports. SICOM6432G is a 19-inch rack mountable device and its combo ports design offers the maximum flexibility for easy expansion.
SICOM6432G supports many Layer 2 software features such as port, VLAN, multicast, QoS, fast redundant ring and Layer 3 functions such as RIP, OSFP, PIM-SM, PIM-DM. It supports Console, Telnet, Web management and network management software based on SNMP. At present, the product is widely used at the backbone networks in many industrial communication systems.
Key Features
- Supports combo gigabit ports with option of 1000 Base-T(X) RJ45 or 1000 Base-X Fiber
- Support Max four 10 gigabit ports, 32 gigabit ports
- Supports DRP/DHP, STP/RSTP/MSTP, ERPS(G.8032) and VRRP for network redundancy
- Supports MRP(PENDING)
- Supports Layer 3 Static routing and routing protocols such as RIP v1/v2 and OSPF
- Supports Qos,VLAN, SNMP v1/v2/v3, RMON(1,2,3,9 Group)
- Supports SFP Digital Diagnostics Monitoring
- Support NAT
- Support PTPv2
- IP40 protection class
Specifications
| Software Functions | Switching function | Supports VLAN, PVLAN Supports port aggregation Supports flow control Supports broadcast storm suppression Supports port rate limit |
|---|---|---|
| Redundancy protocol | Supports VRRP Supports ERPS(G.8032) Supports DRP/DHP with recovery time<20 ms Supports RSTP/MSTP and compatible with STP Supports MRP(PENDING) | |
| Multicast protocol | Supports GMRP Supports IGMP snooping Supports PIM SM and PIM DM | |
| Routing protocol | Supports RIPv1/v2 Supports OSFPv2 Supports static routing Supports IGMP | |
| Security | Supports IEEE 802.1x Supports HTTPS/SSL,SFTP Client Supports SSH Supports RADIUS Supports user classification | |
| Service quality management | Supports ACL Supports 802.1p and TOS/DiffServ, SP and WRR queuing | |
| Management and maintenance | Supports Console, Telnet, and Web management methods Supports SNMPv1/v2c/v3 and can managed by Kyvision Supports file transfer and software update over FTP and TFTP Supports RMON Supports the IP/MAC address conflict alarm, power failure alarm, port alarm, and ring alarm Supports port mirroring Supports Syslog Supports LLDP Supports DDM | |
| IP address management | Supports DHCP Server/Client/Server option 82 Supports NAT | |
| Clock management | Supports SNTP Client Supports NTP Supports PTPv2 | |
| Technical Specifications | Standard | IEEE 802.3i(10Base-T) IEEE 802.3u(100Base-TX and 100Base-FX) IEEE 802.3ab(1000Base-T) IEEE 802.3z(1000Base-SX/LX) IEEE 802.3ae(10GBase-X) IEEE 802.3ad (port aggregation) IEEE 802.3x (flow control) IEEE 802.1p (priority) IEEE 802.1Q(VLAN) IEEE 802.1w(RSTP) IEEE 802.1s(MSTP) IEEE 802.1x |
| Switch properties | Priority queue: 8 Number of VLANs: 4K VLAN ID: 1–4093 Number of multicast groups: 1K Routing table: 4K MAC table: 32K Packet buffer:32Mbit Packet forwarding rate: 107 Mpps | |
| Interface | 10 Gigabit ports: 10GBase-X, SFP+ port Gigabit ports: 1000Base-X, SFP port 10/100/1000Base-T(X): RJ45 port Console port: RS232,RJ45 Alarm: 3-pin 5.08mm-spacing plug-in terminal block, 250 VAC/220 VDC Max, 2A Max, 10A@1s, 60W Max | |
| LED | Alarm LED: Alarm Running LED: Run Power LED: PWR1, PWR2 Port LED: Link/ACT | |
| Power Requirements | Power input: 220VAC/DC(85-264VAC/77-300VDC); 24-48VDC(18-72VDC) Power terminal 5-pin 5.08 mm-spacing plug-in terminal block Power consumption: < 40 W Overload protection: Support Reverse connection protection: Support Redundancy protection: Support | |

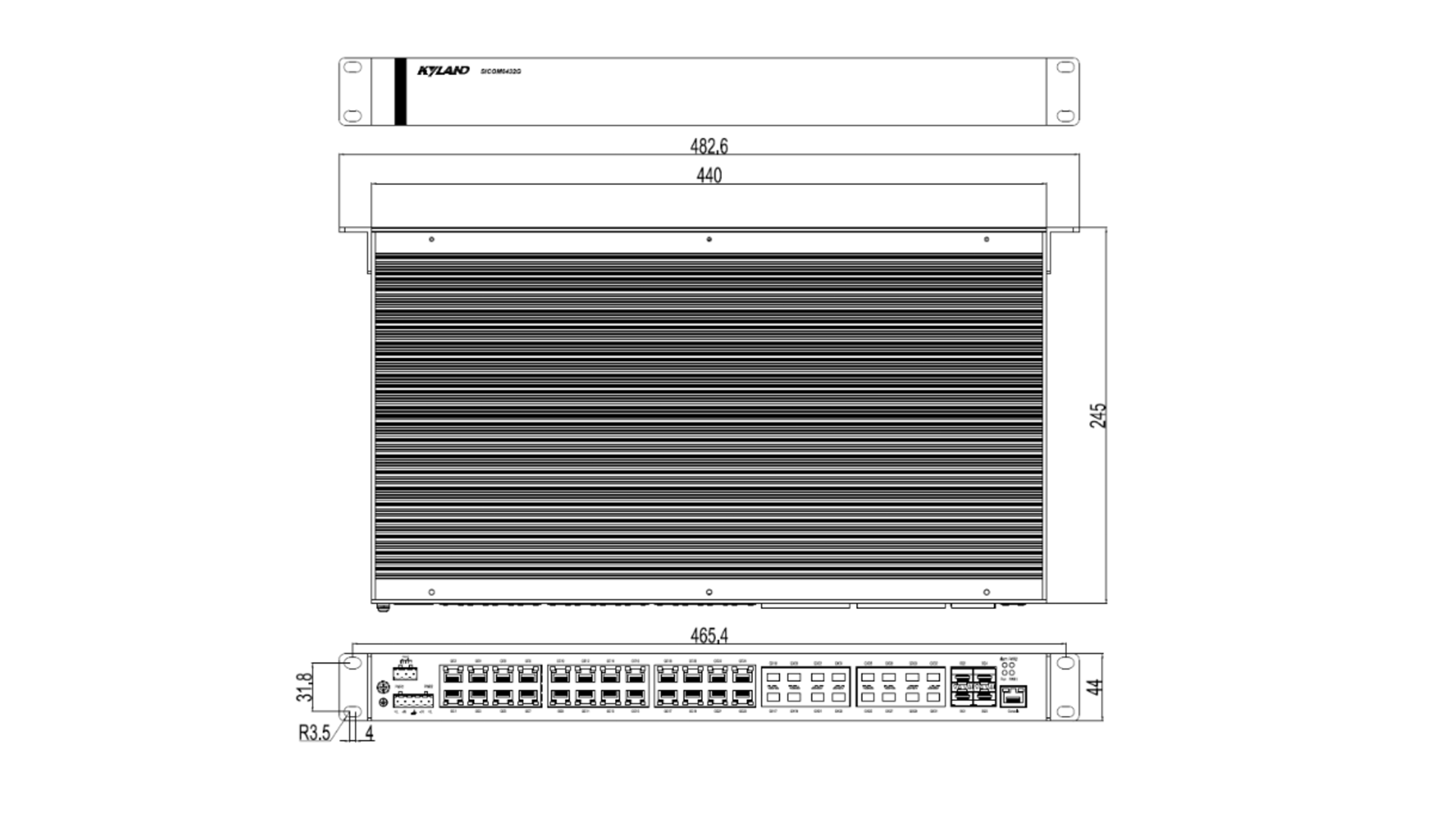

| Physical Characteristics | Housing: Metal Cooling: Natural cooling, fanless Protection Class: IP40 Dimensions(W×H×D): 483 mm × 44mm × 245mm Weight: 4 Kg Mounting: 19 inch rack mounting | |
| Environmental limits | Operating temperature: -40°C to +75°C Storage temperature: -40°C to +85°C Ambient Relative Humidity: 5% to 95% (non-condensing) | |
| Quality assurance | MTBF: 460670h Warranty: 5 years | |
| Approvals | CE , FCC EMC: EN 55032, EN 55035, EN 61000-6-4, EN 61000-6-2 Rail Traffic: EN 50121 IEC 62368-1, EN 62368-1 | |
| Industry standard | EMI FCC CFR47 Part 15,EN55032/CISPR22,Class A EMS Machinery |
Ordering Information
| Ordering Information | |
| Product Model | SICOM6432G-Ports-PS1-PS2 |
| Code definition | Code selection |
| Ports | 4X8G8GX16GE: 4×10GBase-X SFP+ ports, 8×1000Base-X,10/100/1000Base-T(X) Combo ports, 8×1000Base-X SFP ports, 16×10/100/1000Base-T(X) ports 4X24GE: 4×10GBase-X SFP+ ports, 24×10/100/1000Base-T(X) ports 8G8GX16GE: 8×1000Base-X,10/100/1000Base-T(X) Combo ports, 8×1000Base-X SFP ports, 16×10/100/1000Base-T(X) ports4GX24GE: 4×1000Base-X SFP ports, 24×10/100/1000Base-T(X) ports |
| PS1-PS2: power input | HV-HV=220VAC/DC(85-264VAC/77-300VDC), redundant power inputs L2-L2=24-48VDC(18-72VDC), redundant power inputs HV=220VAC/DC(85-264VAC/77-300VDC), single power input L2=24-48VDC(18-72VDC), single power input |
| Accessories | |
| Accessory Model | Description |
| Gigabit SFP module | See the selection table of industrial gigabit SFP module. |
| 10 Gigabit SFP+ module | See the selection table of industrial 10 gigabit SFP+ module. |
| DT-FCZ-RJ45-01 | Single-port RJ45 dust plug |
Downloads
| Name | Type | File Size | |
|---|---|---|---|
SICOM6432G/3432G-Series_Industrial-Ethernet-Switches-Web-Operation-Manual_V1.0 | Operation Manual | ||
SICOM6432G/3432G-Series_Industrial-Ethernet-Switches-Hardware-Installation-Manual_V1.0 | Hardware Installation Manual | ||
Kyland_SICOM6432G_Datasheet | Datasheet |
| Unmanaged/managed | Layer 3 Managed Switches |
|---|---|
| Installation | Rackmount Ethernet Switches |
| Certificate | CE/FCC, EN50121 |
| Interface | 10G/Gigabit |
| IP Class | IP40 |
| Number of Ports | 29 – 36 |
| Network Interface | Fiber Connectors, RJ45 Connectors |
| Power Supply | 24-48V DC, 220V AC |
| Operation Temperature | -40°C ~ 75°C |
| Features | IEEE1588V2 |
