SICOM2024L
28G port layer 2 managed rack mountable switches
Product Overview
SICOM2024L is a layer 2 managed industrial Ethernet switch designed to operate reliably in electrically harsh and climatically demanding utility substation and industrial environments. SICOM2024L is a 19-inch 1U rack mountable device and its internal modular design offers the maximum flexibility for easy expansion.SICOM2024L supports many Layer 2 software features such as port, VLAN, multicast, QoS, fast redundant ring. It supports Console, Telnet, Web management and network management software based on SNMP. At present, the product is widely used at the intelligent substation and many other industrial communication systems.
Key Features
- Supports max 28 gigabit ports
- Supports DT-Ring ,DRP, RSTP for network redundancy
- Supports IEC61850 MMS management
- Supports alarm and syslog
- Supports SFP Digital Diagnostics Monitoring
- CE, FCC (Pending)
Specifications
| Software Functions | Switching Function | Supports VLAN and PVLAN Supports GVRP Supports port aggregation Supports flow control Supports port rate limit Supports broadcast storm suppression Supports static ARP Supports ARP aging time Supports static MAC address Supports MAC aging time Supports MAC learning setting |
| Redundancy Protocol | Supports DHP and DRP Supports DT-Ring, DT-Ring+, and DT-VLAN Supports STP/RSTP/MSTP | |
| Multicast Protocol | Supports IGMP snooping，IGMP query Supports GMRP Supports static multicast | |
| Network Security | Supports IEEE 802.1x Supports HTTPs/SSL Supports SSH Supports RADIUS Supports TACACS+ Supports user grading Supports user login timeout Supports enhanced password Supports port isolate Supports MAC learing limit Supports remote access serurity | |
| Service Quality Management | Supports ACL Supports 802.1p(CoS),DSCP Supports SP and WRR queuing | |
| Management & Maintenance | Supports Console, Telnet, and Web management Supports SNMPv1/v2c/v3 and can managed by Kyvision Supports IEC61850 MMS server Supports software update via FTP Supports configuration upload/download via FTP/HTTP Supports the IP/MAC address conflict alarm, power alarm, temperature alarm,port alarm, CPU/ Memory usage alarm，config change alarm，and ring alarm Supports RMON Supports port mirroring Supports Syslog，save to flash or send to log server Supports LLDP Supports Link-check | |
| IP Address Management | Supports DHCP server/client/snooping/option 82 | |
| Clock Management | Supports SNTP server/client Supports RTC | |
| Product Specifications | Standard | IEEE 802.3i(10Base-T) IEEE 802.3u(100Base-TX and 100Base-FX) IEEE 802.3ab(1000Base-T) IEEE 802.3z(1000Base-SX/LX) IEEE 802.3ad (port aggregation) IEEE 802.3x(flow control) IEEE 802.1p(priority) IEEE 802.1Q(VLAN) IEEE 802.1w(RSTP) |
| Switch Properties | Priority queue: 8 Number of VLANs: 4094 VLAN ID: 1–4093 Number of multicast groups: 511 MAC table: 8K Packet buffer: 4.1Mbit Packet forwarding rate: 41.7Mpps Switching delay:<10μs | |
| Interface | Gigabit ports:1000Base-X, SFP port;10/100/1000Base-T(X), RJ45 port Console port: RS232,RJ45 Alarm contact: 3-pin 5.08mm-spacing plug-in terminal block | |
| LED | LED on front panel Running LED: Run Alarm LED: Alarm Power LED: PWR1, PWR2 Port LED: Link/ACT Port speed LED: Speed LED on rear panel Port LED: Link/ACT Port speed LED: Speed | |
| Power Requirements | Power input: L2: 24-48VDC(18-72VDC), HV: 100-240VAC,50/60Hz;110-220VDC (85-264VAC/77-300VDC) Power terminal: 5-pin 5.08 mm-spacing plug-in terminal block Power consumption:<35w Overload protection: Support Reverse connection protection: Support Redundancy protection: Support | |
| Physical Characteristics | Housing: Metal Cooling: Natural cooling, fanless Protection Class: IP40 Dimensions(WxHxD): 482.6mm×44mm×245mm Weight: 4Kg Mounting: 19 inch 1U rack mounting | |
| Environmental Limits | Operating temperature: -40°C to +85°C Storage temperature: -40°C to +85°C Ambient Relative Humidity: 5% - 95% (non-condensing) | |
| Quality Assurance | MTBF: 355979 hrs Warranty: 5 years | |
| Approvals | CE/FCC (Pending) | |
| Industry Standard | EMI: FCC CFR47 Part 15,EN55022/CISPR22,Class A EMS: IEC61000-4-2(ESD) ±6kV(contact),±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz-2GHz) IEC61000-4-4(EFT) Power Port:±4kV;Data Port:±2kV IEC61000-4-5(Surge) Power Port:±2kV/DM,±4kV/CM;Data Port:±2kV IEC61000-4-6(CS) 3V(10kHz-150kHz);10V(150kHz-80MHz) IEC61000-4-8(power frequency magnetic field) 100A/m(cont.),1000A/m(1s-3s) IEC61000-4-9(pulsed magnetic field) 1000A/m IEC61000-4-10(damped oscillation) 100A/m IEC61000-4-12(oscillatory wave) 2.5kV/CM,1kV/DM IEC61000-4-16(common mode conduction) 30V(cont.),300V(1s) Machinery: IEC60068-2-6 (vibration) IEC60068-2-27 (shock) IEC60068-2-32 (free fall) |

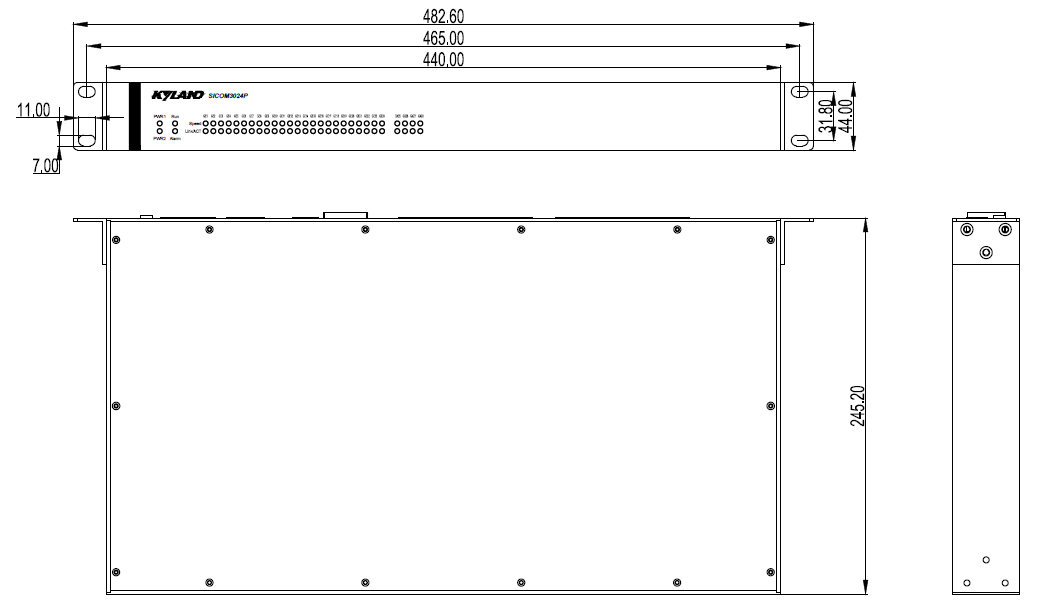

Mechanical Drawing
Ordering Information
| Product Model | SICOM2024L-Ports-PS1-PS2 |
|---|---|
| Code definition | Code selection |
| Ports: | 4GX24GE: 4x100/1000Base-X SFP ports; 24x10/100/1000Base-FX,RJ45 ports 4G12GX12GE: 4x1000 fiber/copper ports; 12x100/1000Base-X SFP ports; 12x10/100/1000Base-T(X) RJ45 ports |
| PS1-PS2: power input | HV-HV=220VAC/DC(85-264VAC/77-300VDC), redundant power inputs L2-L2=24-48VDC(18-72VDC), redundant power inputs HV=220VAC/DC(85-264VAC/77-300VDC), single power input L2=24-48VDC(18-72VDC), single power input |
Downloads
| Name | Type | File Size | |
|---|---|---|---|
Kyland_SICOM2024L_Datasheet | Datasheet |
| Unmanaged/managed | Layer 2 Managed Switches |
|---|---|
| Installation | Rackmount Ethernet Switches |
| IP Class | IP40 |
| Operation Temperature | -40°C ~ 85°C |
| Interface | Gigabit/100M |
| Network Interface | Fiber Connectors, RJ45 Connectors |
| Number of Ports | 17 – 28 |
| Power Supply | 24-48V DC, 220V AC |
| Certificate | CE/FCC |
