SICOM3000A-LITE
8+2G port layer 2 managed DIN-Rail switches.
Product Overview
SICOM3000A-LITE is low power consumption Layer 2 DIN-Rail Managed Industrial Ethernet Switch. It is equipped with 2 100/1000M SFP ports and 8 10/100Base-T(X) RJ45 ports. SICOM3000A-LITE supports DT-Ring (recovery time<50ms), DRP/DHP (recovery time<20ms), STP/RSTP/MSTP, VLAN, multicast, QoS, SSH and many other Layer 2 software features, and supports CLI, Telnet, Web management methods, Kyvision centralized management based on SNMPv1/v2c/v3. It supports DDM, EtherNet/IP and Modbus/TCP. It is especially designed for harsh environments with wide operating temperature range, EMC level 3, IP40 protection class, and can be deployed in Factory automation, Transportation, Oil & gas and many other industrial applications.
Key Features
- 2 100Base-X, 1000Base-X SFP ports and 8 10/100Base-T(X) RJ45 ports
- Supports Redundancy protocols: DT-Ring (recovery time<50ms), DRP/DHP (recovery time<20ms), STP/RSTP/MSTP
- Supports Network Security: HTTPS/SSL, SSH, TACACS+, IEEE802.1X, Radius, User Classification, MAC address binding with switch ports
- Supports CLI, Telnet, WEB management methods, Kyvision centralized management based on SNMPv1/v2c/v3
- Supports EtherNet/IP and Modbus/TCP protocols
- Supports DDM
- Supports IP40 protection
- CE, FCC certificates
Specifications
| Software Functions | Switching | Supports VLAN, PVLAN Supports GVRP Supports port aggregation, LACP Supports port flow control Supports Rate limit based on flow (ACL Rate Limiter) Supports Global broadcast storm suppression (QOS Storm Policing) |
|---|---|---|
| Redundancy | Supports DT-Ring, DT-Ring+, DT-VLAN with the recovery time<50ms Supports DRP/DHP with the recovery time<20ms Supports STP/RSTP/MSTP | |
| Multicast | Supports IGMP snooping Supports GMRP Supports static multicast Supports IGMPv2/v3 | |
| Network Security | Supports HTTPS/SSL Supports SSH Supports TACACS+ Supports IEEE802.1X Supports RADIUS Supports User Classification Supports MAC address binding with switch ports | |
| Service Quality | Supports QoS, 802.1p(CoS), DSCP Supports SP, WRR queue scheduling Supports ACL | |
| Industrial protocol | Supports EtherNet/IP, Modbus/TCP | |
| Management and Maintenance | Supports Console, Telnet, WEB management methods Supports SNMPv1/v2c/v3, Kyvision centralized management Supports software upgrade by SFTP/HTTP Supports Power alarm, IP/MAC conflict alarm, Memory/CPU usage alarm, Port alarm, Ring alarm, Port traffic alarm, CRC error and packet lose alarm, SFP port RX power alarm and TX power alarm Supports DDM (SFP port) Supports loop detection Supports RMON Supports port mirroring Supports Syslog Supports LLDP Supports Link-check Supports EtherNet/IP, Modbus/TCP Supports IPv4/IPv6 | |
| IP management | Supports DHCP server/snooping/client, DHCP Option 82 Supports ARP | |
| Clock Management | Supports SNTP Client | |
| Product Specifications | Technical Parameter | Standard IEEE 802.3i (10Base-T) IEEE 802.3u (100Base-T and 100Base-FX) IEEE 802.3z (1000Base-SX/LX) IEEE 802.3ad (Link aggregation) IEEE 802.3x (Flow Control) IEEE 802.1p (Class of Service) IEEE 802.1Q (VLAN) IEEE 802.1d (STP) IEEE 802.1w (RSTP) IEEE 802.1s (MSTP) IEEE 802.1x (Network Access Control) IEEE 802.1ab (LLDP) |
| Switch Properties | Priority Queues 8 Number of VLANs 4K VLAN ID 1～4094 Number of Multicast Groups 8K MAC Table 8K Packet Buffer 4Mbit Packet Forwarding Rate 4.2Mpps Switching Delay <5μs Jumbo Frame Size 9.6KB | |
| Interface | Gigabit Port 100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP slot Fast Ethernet Port 100Base-FX, SM/MM, SC/ST/FC connector 10/100Base-T(X), RJ45 port, Auto MDI/MDI-X connection Console Port Mini USB Alarm Contact 3-pin 5.08mm-spacing plug-in terminal block, 250VAC/220VDC Max, 2A Max | |
| LED | LEDs on Front Panel Running LED: Run Alarm LED: Alarm Power LED: PWR1,PWR2 Ring LED: Ring Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT(Fiber port) | |
| Button | Reset: Reboot and restore default configuration | |
| Power Requirement | Power Input 24-48VDC(18-72VDC), 12-24VDC(12-36VDC) Power Terminal 5-pin 5.08 mm-spacing plug-in terminal block Power Consumption <9W Overload Protection Support Reverse Protection Support Redundancy Protection Support | |
| Physical Characteristics | Housing Metal Cooling Natural convection, fanless Protection Class IP40 Dimension 53.6mm×135mm×106.5mm (W×H×D) Weight 0.84Kg Mounting DIN-Rail or Panel Mounting | |
| Environmental Limit | Operating Temperature -40℃～+75℃ Storage Temperature -40℃～+85℃ Ambient Relative Humidity 5% to 95% (non-condensing) | |
| Warranty | MTBF 2671696h (2GX8T) Warranty 5 years | |
| Approvals | CE, FCC | |
| Industrial Standard | EMI FCC CFR47 Part 15,EN55032/CISPR22,Class A EMS IEC61000-4-2(ESD) ±6kV(contact),±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz～2GHz) IEC61000-4-4(EFT) Power Port:±2kV;Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM,±2kV/CM;Data Port:±1kV IEC61000-4-6(CS) 10V(150kHz～80MHz) Machinery IEC60068-2-6 (vibration) IEC60068-2-27 (shock) IEC60068-2-32 (free fall) |

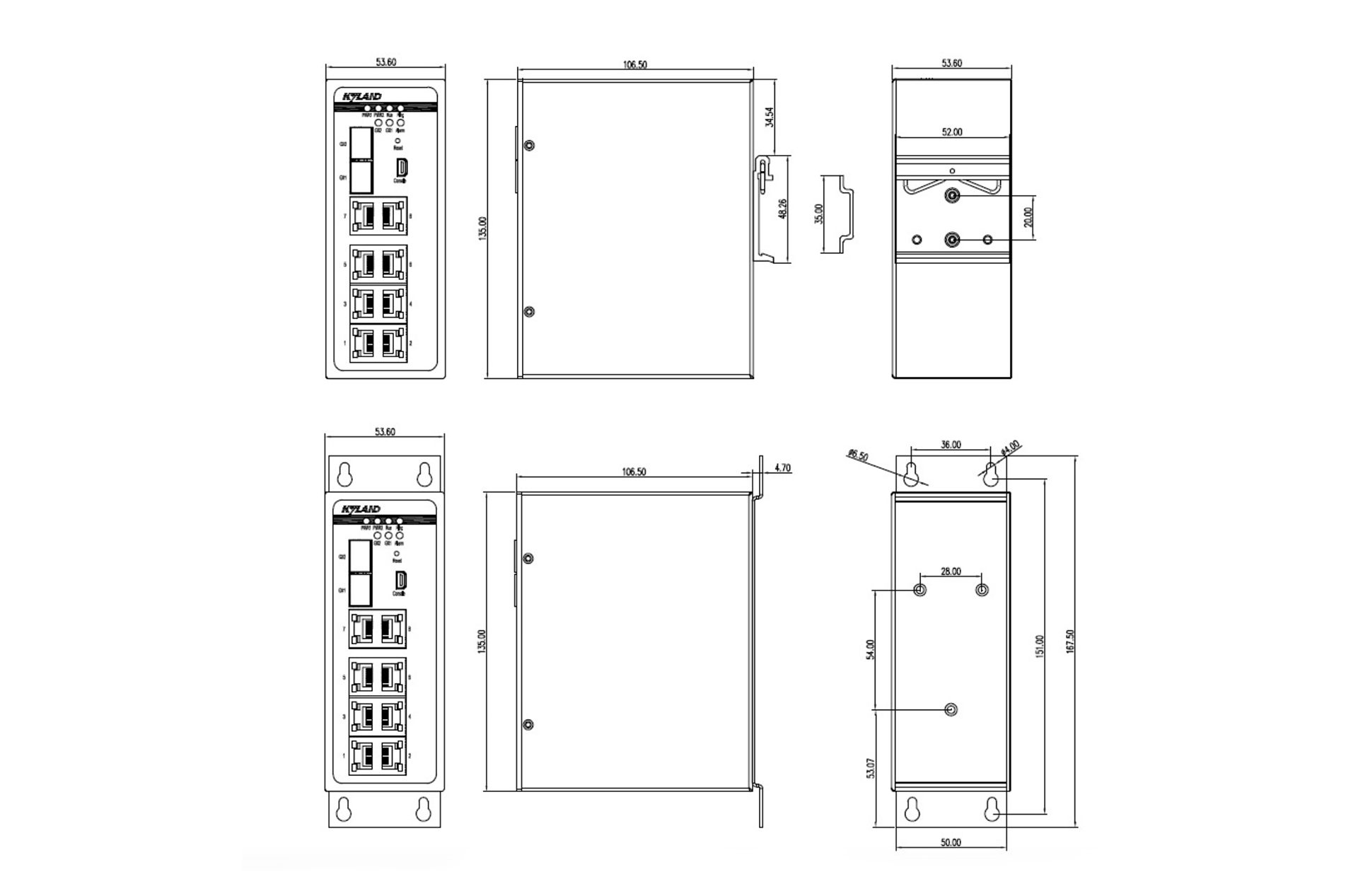

Mechanical Drawing
Ordering Information
| Product Model | SICOM3000A-LITE-Ports-Connector-PS1-PS2 |
|---|---|
| Code definition | Code selection |
| Ports | 6T=6×10/100Base-T(X) RJ45 ports 8T=8×10/100Base-T(X) RJ45 ports 1S4T=1×100Base-FX, single mode fiber ports; 4×10/100Base-T(X) RJ45 ports 1M4T=1×100Base-FX, multi mode fiber ports; 4×10/100Base-T(X) RJ45 ports 2S4T=2×100Base-FX, single mode fiber ports; 4×10/100Base-T(X) RJ45 ports 2M4T=2×100Base-FX, multi mode fiber ports; 4×10/100Base-T(X) RJ45 ports 2S6T=2×100Base-FX, single mode fiber ports; 6×10/100Base-T(X) RJ45 ports 2M6T=2×100Base-FX, multi mode fiber ports; 6×10/100Base-T(X) RJ45 ports 2GX8T=2×100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP ports; 8×10/100Base-T(X) RJ45 ports |
| Connector | SC05=SC connector, multi mode,1310nm, 5km ST05=ST connector, multi mode,1310nm, 5km FC05=FC connector, multi mode,1310nm, 5km SC40=SC connector, single mode,1310nm, 40km ST40=ST connector, single mode,1310nm, 40km FC40=FC connector, single mode,1310nm, 40km SC60=SC connector, single mode,1310nm, 60km SC80=SC connector, single mode,1550nm, 80km NA: No 100Base-FX fiber port |
| PS1-PS2 | L2-L2=24-48VDC (18-72VDC), redundant power inputs L3-L3=12-24VDC (12-36VDC), redundant power inputs |
| Accessory Model | Description |
|---|---|
| Gigabit SFP module | See the selection table of industrial gigabit SFP module. |
| DT-BGAZ-02 | Panel for panel mounting |
| DT-FCZ-RJ45-01 | Dustproof cover for RJ45 port |
| DT-XL- Mini USB -USB-2m | Mini USB to USB cable for Console management, 2m |
Downloads
| Name | Type | File Size | |
|---|---|---|---|
SICOM3000A-LITE_Hardware-Installation-Manual_V1.0 | Hardware Installation Manual | ||
Kyland_SICOM3000A-LITE_Datasheet | Datasheet |
| Unmanaged/managed | Layer 2 Managed Switches |
|---|---|
| Installation | DIN Rail Ethernet Switches |
| IP Class | IP40 |
| Operation Temperature | -40°C ~ 75°C |
| Network Interface | Fiber Connectors, RJ45 Connectors |
| Number of Ports | 9 – 16 |
| Power Supply | 12-24V DC, 24-48V DC |
| Certificate | CE/FCC |
